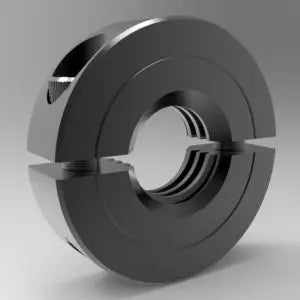

The 1 1/8-5" Right Hand Steel (Black Oxide) ACME Threaded Shaft Collar - Two-Piece Clamp is designed for standard right-hand ACME threaded shafts and provides secure, precise positioning with high clamping power. Its two-piece clamp design allows for easy installation and adjustment while providing superior holding power compared to set-screw style collars. Precision machined for a non-marring grip, it is ideal for stroke limiting, stops, height adjustment, spring tensioning, machinery, and industrial applications.
| SPECIFICATIONS | DETAILS | |
| PART NUMBER | 10L102F | |
| TYPE | Right Hand Acme | |
| DESIGN |
Two-piece design for easy installation, repositioning, and adjustment
|
|
| MATERIAL |
Steel (Black Oxide) offers a combination of mechanical strength from the steel and surface protection from the black oxide coating
|
|
| SERIES | Signature | |
| ALLOY | 1215 | |
| FINISH | Black Oxide | |
| APPROXIMATE WEIGHT | 0.72 lb | |
| COUNTRY OF ORIGIN | USA | |
| UPC CODE | 662786013478 | |
| ROHS2 COMPLIANT | Yes | |
| REACH COMPLIANT | Yes | |
| DIMENSIONAL ATTRIBUTES | ||
| THREADED BORE SIZE | 1 1/8-5 in | |
| OUTSIDE DIAMETER | 2.375 in | |
| WIDTH | 0.750 in | |
| RECESSED SCREW | Yes | |
| SCREW SIZE | 5/16-24 x 1 in | |
| SCREW MATERIAL | Alloy Steel | |
| APPLICATIONS |
Ideal for linear motion systems, actuators, machine tools, automation equipment, jigs and fixtures, material handling systems, and motion-control applications
|
|
| BRAND | Stafford Manufacturing |
The 1 1/8-5" Right Hand Steel (Black Oxide) ACME Threaded Shaft Collar - Two-Piece Clamp is designed for standard right-hand ACME threaded shafts and provides secure, precise positioning with high clamping power. Its two-piece clamp design allows for easy installation and adjustment while providing superior holding power compared to set-screw style collars. Precision machined for a non-marring grip, it is ideal for stroke limiting, stops, height adjustment, spring tensioning, machinery, and industrial applications.
| SPECIFICATIONS | DETAILS | |
| PART NUMBER | 10L102F | |
| TYPE | Right Hand Acme | |
| DESIGN |
Two-piece design for easy installation, repositioning, and adjustment
|
|
| MATERIAL |
Steel (Black Oxide) offers a combination of mechanical strength from the steel and surface protection from the black oxide coating
|
|
| SERIES | Signature | |
| ALLOY | 1215 | |
| FINISH | Black Oxide | |
| APPROXIMATE WEIGHT | 0.72 lb | |
| COUNTRY OF ORIGIN | USA | |
| UPC CODE | 662786013478 | |
| ROHS2 COMPLIANT | Yes | |
| REACH COMPLIANT | Yes | |
| DIMENSIONAL ATTRIBUTES | ||
| THREADED BORE SIZE | 1 1/8-5 in | |
| OUTSIDE DIAMETER | 2.375 in | |
| WIDTH | 0.750 in | |
| RECESSED SCREW | Yes | |
| SCREW SIZE | 5/16-24 x 1 in | |
| SCREW MATERIAL | Alloy Steel | |
| APPLICATIONS |
Ideal for linear motion systems, actuators, machine tools, automation equipment, jigs and fixtures, material handling systems, and motion-control applications
|
|
| BRAND | Stafford Manufacturing |
SKU:10L102F
1 1/8-5" Right Hand Steel (Black Oxide) ACME Threaded Shaft Collar - Two-Piece Clamp
