The 9/16-18 x 1/4 Male Joint Industry Council x Female National Pipe Thread Straight Connector is a critical component designed to create a secure, reliable, and leak-proof connection between a male JIC 37° flare fitting and a female NPT threaded fitting. This connector is commonly used in hydraulic, pneumatic, and fluid transfer systems, enabling the transition between JIC flare and NPT threaded connections. The combination of flare sealing and tapered thread sealing ensures strong performance in a wide range of fluid and gas applications, particularly those involving high-pressure systems.
| Specification | Details |
|---|---|
| TYPE | Straight Connector |
| DESIGN | Leak-Proof Integrity The combination of the JIC 37° flare and NPT tapered thread ensures maximum sealing reliability for both low- and high-pressure systems |
| MATERIAL | Steel Ideal for corrosive and harsh environments |
| MATERIAL CONSTRUCTION | Steel |
| WEIGHT (LBS) | 0.100 |
| CONNECTION SIZE 1 | 1/4" |
| CONNECTION SIZE 2 | 3/8" |
| CONNECTION TYPE | Male JIC|FNPT |
| CONNECTION TYPE 1 | 37 deg JIC Male Flared |
| CONNECTION TYPE 2 | FNPT |
| FITTING TYPE | Connector |
| MAXIMUM OPERATING PRESSURE | 5000 psi |
| THREAD SIZE | 9/16-18 x 7/16-20 |
| APPLICATIONS | Used in Hydraulic Systems, Pneumatic Systems, Fluid & Gas Transfer, Industrial Equipment, Automotive & Construction |
| BRAND | Midland Industries |
Link to Midland Industries Catalog
The 9/16-18 x 1/4 Male Joint Industry Council x Female National Pipe Thread Straight Connector is a critical component designed to create a secure, reliable, and leak-proof connection between a male JIC 37° flare fitting and a female NPT threaded fitting. This connector is commonly used in hydraulic, pneumatic, and fluid transfer systems, enabling the transition between JIC flare and NPT threaded connections. The combination of flare sealing and tapered thread sealing ensures strong performance in a wide range of fluid and gas applications, particularly those involving high-pressure systems.
| Specification | Details |
|---|---|
| TYPE | Straight Connector |
| DESIGN | Leak-Proof Integrity The combination of the JIC 37° flare and NPT tapered thread ensures maximum sealing reliability for both low- and high-pressure systems |
| MATERIAL | Steel Ideal for corrosive and harsh environments |
| MATERIAL CONSTRUCTION | Steel |
| WEIGHT (LBS) | 0.100 |
| CONNECTION SIZE 1 | 1/4" |
| CONNECTION SIZE 2 | 3/8" |
| CONNECTION TYPE | Male JIC|FNPT |
| CONNECTION TYPE 1 | 37 deg JIC Male Flared |
| CONNECTION TYPE 2 | FNPT |
| FITTING TYPE | Connector |
| MAXIMUM OPERATING PRESSURE | 5000 psi |
| THREAD SIZE | 9/16-18 x 7/16-20 |
| APPLICATIONS | Used in Hydraulic Systems, Pneumatic Systems, Fluid & Gas Transfer, Industrial Equipment, Automotive & Construction |
| BRAND | Midland Industries |
Link to Midland Industries Catalog
SKU:240564

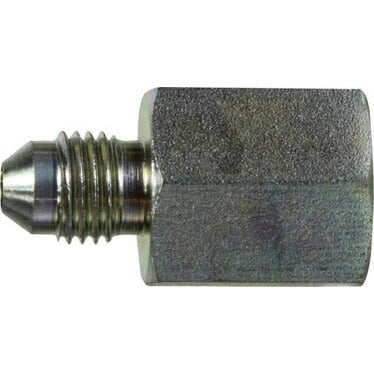

9/16-18 x 1/4 Male Joint Industry Council x Female National Pipe Thread Straight Connector
- Regular price
- $3.61
- Sale price
- $3.61
- Regular price
-
