The 8 x 2 Ductile Iron Reducing Flange is a specialized flange designed to connect a 8-inch pipe to a 2-inch pipe within a piping system. It ensures a secure, leak-free transition between different pipe sizes, maintaining system integrity and optimal pressure-handling capabilities.
| Specification | Details |
|---|---|
| TYPE | Reducing Flange |
| DESIGN | Precision machined surface, ensures a tight, leak-proof seal |
| MATERIAL | Iron for superior strength and impact resistance |
| WEIGHT | 39.980 |
| ADDITIONAL INFORMATION | 14-1/4" Hole Center to Center |
| MATERIAL CONSTRUCTION | Ductile Iron |
| BOLT HOLE DIAMETER | 1" |
| CONNECTION SIZE 1 | 8" |
| CONNECTION SIZE 2 | 2" |
| CONNECTION TYPE | Threaded|Threaded |
| CONNECTION TYPE 1 | Threaded |
| CONNECTION TYPE 2 | Threaded |
| DIMENSIONS STANDARDS | ASME B16.42/AWWA C110, ASME B1.20. |
| DIMENSIONS | 16" OD x 1.94" H |
| FINISH | Black |
| FITTING TYPE | Flange |
| FLANGE THICKNESS | 1.19" |
| NUMBER OF BOLT HOLES | 12 |
| PRESSURE CLASS | 125 lb |
| PRESSURE RATING | 150 psi |
| THREAD SIZE | #8-8 x 2-11-1/2 |
| CATALOG DESCRIPTION | 6 x 16 150 R (Pipe Size 6 x 10) |
| SIZE | 2" x 16" |
| UNIT WEIGHT KG | 26.54 |
| APPLICATIONS | Ideal for Water & Wastewater Systems, HVAC Systems, Industrial Processing, Fire Protection Systems, Oil & Gas Pipelines |
| BRAND | Midland Industries |
The 8 x 2 Ductile Iron Reducing Flange is a specialized flange designed to connect a 8-inch pipe to a 2-inch pipe within a piping system. It ensures a secure, leak-free transition between different pipe sizes, maintaining system integrity and optimal pressure-handling capabilities.
| Specification | Details |
|---|---|
| TYPE | Reducing Flange |
| DESIGN | Precision machined surface, ensures a tight, leak-proof seal |
| MATERIAL | Iron for superior strength and impact resistance |
| WEIGHT | 39.980 |
| ADDITIONAL INFORMATION | 14-1/4" Hole Center to Center |
| MATERIAL CONSTRUCTION | Ductile Iron |
| BOLT HOLE DIAMETER | 1" |
| CONNECTION SIZE 1 | 8" |
| CONNECTION SIZE 2 | 2" |
| CONNECTION TYPE | Threaded|Threaded |
| CONNECTION TYPE 1 | Threaded |
| CONNECTION TYPE 2 | Threaded |
| DIMENSIONS STANDARDS | ASME B16.42/AWWA C110, ASME B1.20. |
| DIMENSIONS | 16" OD x 1.94" H |
| FINISH | Black |
| FITTING TYPE | Flange |
| FLANGE THICKNESS | 1.19" |
| NUMBER OF BOLT HOLES | 12 |
| PRESSURE CLASS | 125 lb |
| PRESSURE RATING | 150 psi |
| THREAD SIZE | #8-8 x 2-11-1/2 |
| CATALOG DESCRIPTION | 6 x 16 150 R (Pipe Size 6 x 10) |
| SIZE | 2" x 16" |
| UNIT WEIGHT KG | 26.54 |
| APPLICATIONS | Ideal for Water & Wastewater Systems, HVAC Systems, Industrial Processing, Fire Protection Systems, Oil & Gas Pipelines |
| BRAND | Midland Industries |
SKU:108098

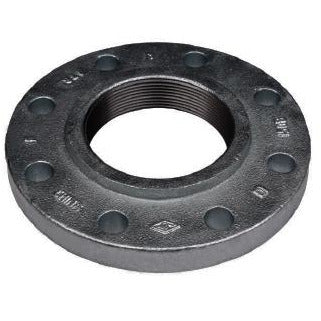

8 x 2 Ductile Iron Reducing Flange
- Regular price
- $476.35
- Sale price
- $476.35
