The 7/8-14 Joint Industry Council x 3/4 Male Connector is a hydraulic fitting designed to connect components with JIC 37° flare fittings and 3/4-inch male threads. It ensures leak-proof connections in fluid transfer systems that operate under high-pressure and high-vibration conditions.
| Specification | Details |
|---|---|
| TYPE | Connector |
| DESIGN | Compact Profile Optimized for tight spaces in hydraulic assemblies |
| MATERIAL | Steel Ideal for corrosive and harsh environments |
| MATERIAL CONSTRUCTION | Steel |
| WEIGHT (LBS) | 0.290 |
| CONNECTION SIZE 1 | 5/8" |
| CONNECTION SIZE 2 | 3/4" |
| CONNECTION TYPE | MJIC|MNPTF |
| CONNECTION TYPE 1 | Male JIC |
| CONNECTION TYPE 2 | Male NPTF |
| FITTING TYPE | Adapter |
| MAXIMUM OPERATING PRESSURE | 2500 psi |
| SERIES | 2404 |
| THREAD SIZE | 7/8-14 x 1-1/16-12 |
| THREAD SIZE 1 | 7/8 - 14 |
| THREAD SIZE 2 | 3/4 - 14 |
| APPLICATIONS | Used in Hydraulic Systems, Pneumatic Systems, Automotive, Oil & Gas, Aerospace |
| BRAND | Midland Industries |
Link to Midland Industries Catalog
The 7/8-14 Joint Industry Council x 3/4 Male Connector is a hydraulic fitting designed to connect components with JIC 37° flare fittings and 3/4-inch male threads. It ensures leak-proof connections in fluid transfer systems that operate under high-pressure and high-vibration conditions.
| Specification | Details |
|---|---|
| TYPE | Connector |
| DESIGN | Compact Profile Optimized for tight spaces in hydraulic assemblies |
| MATERIAL | Steel Ideal for corrosive and harsh environments |
| MATERIAL CONSTRUCTION | Steel |
| WEIGHT (LBS) | 0.290 |
| CONNECTION SIZE 1 | 5/8" |
| CONNECTION SIZE 2 | 3/4" |
| CONNECTION TYPE | MJIC|MNPTF |
| CONNECTION TYPE 1 | Male JIC |
| CONNECTION TYPE 2 | Male NPTF |
| FITTING TYPE | Adapter |
| MAXIMUM OPERATING PRESSURE | 2500 psi |
| SERIES | 2404 |
| THREAD SIZE | 7/8-14 x 1-1/16-12 |
| THREAD SIZE 1 | 7/8 - 14 |
| THREAD SIZE 2 | 3/4 - 14 |
| APPLICATIONS | Used in Hydraulic Systems, Pneumatic Systems, Automotive, Oil & Gas, Aerospace |
| BRAND | Midland Industries |
Link to Midland Industries Catalog
SKU:24041012

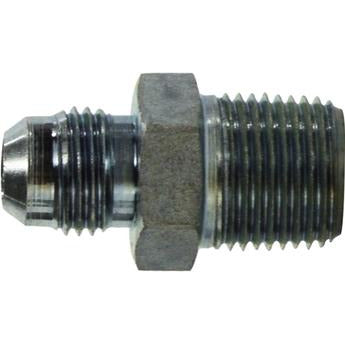

7/8-14 Joint Industry Council x 3/4 Male Connector
- Regular price
- $30.78
- Sale price
- $30.78
