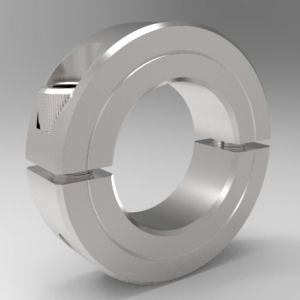

The 6mm Stainless Steel (304) Metric Shaft Collar - Two-Piece Clamp - Economy is designed for secure shaft positioning on metric round shafts, thin-wall tubing, and split hubs. Fully metric, including the clamp screws, it can be completely disassembled and installed anywhere along the shaft for easy assembly and adjustment. Precision-machined from 304 stainless steel, it provides excellent corrosion resistance, strength, and durability, while the smooth bore protects shaft surfaces from damage. The Economy style offers a cost-effective solution with reliable holding power compared to set-screw type collars. Stocked In: Steel, Stainless Steel
|
SPECIFICATIONS |
DETAILS |
| PART NUMBER | 32SM006 |
| TYPE | Economy |
| DESIGN | Two-piece clamp design allows installation without shaft-end access and provides high clamping force with a secure, non-marring grip |
| MATERIAL | Stainless Steel (304) provides excellent corrosion resistance, strength, and durability |
| APPROXIMATE WEIGHT | 0.03 lb |
| ALLOY | 304 |
| FINISH | Shiny |
| SERIES | Economy |
| COUNTRY ORIGIN | China |
| UPC CODE | 662786036248 |
| ROHS2 COMPLIANT | Yes |
| REACH COMPLIANT | Yes |
| DIMENSIONAL ATTRIBUTES | |
| BORE SIZE | 6 mm |
| OUTSIDE DIAMETER | 16 mm |
| WIDTH | 9 mm |
| RECESSED SCREW | No |
| SCREW SIZE | M3 x .5 x 8MM |
| SCREW MATERIAL | 18-8 Stainless Steel |
| CAPACITIES | |
| SCREW SEATING TORQUE | 0.43 Nm |
| AXIAL HOLD | 465 N |
| APPLICATIONS | Ideal for Shaft positioning, Industrial machinery, Automation equipment, Conveyor systems, Robotics |
| BRAND | Stafford Manufacturing |
The 6mm Stainless Steel (304) Metric Shaft Collar - Two-Piece Clamp - Economy is designed for secure shaft positioning on metric round shafts, thin-wall tubing, and split hubs. Fully metric, including the clamp screws, it can be completely disassembled and installed anywhere along the shaft for easy assembly and adjustment. Precision-machined from 304 stainless steel, it provides excellent corrosion resistance, strength, and durability, while the smooth bore protects shaft surfaces from damage. The Economy style offers a cost-effective solution with reliable holding power compared to set-screw type collars. Stocked In: Steel, Stainless Steel
|
SPECIFICATIONS |
DETAILS |
| PART NUMBER | 32SM006 |
| TYPE | Economy |
| DESIGN | Two-piece clamp design allows installation without shaft-end access and provides high clamping force with a secure, non-marring grip |
| MATERIAL | Stainless Steel (304) provides excellent corrosion resistance, strength, and durability |
| APPROXIMATE WEIGHT | 0.03 lb |
| ALLOY | 304 |
| FINISH | Shiny |
| SERIES | Economy |
| COUNTRY ORIGIN | China |
| UPC CODE | 662786036248 |
| ROHS2 COMPLIANT | Yes |
| REACH COMPLIANT | Yes |
| DIMENSIONAL ATTRIBUTES | |
| BORE SIZE | 6 mm |
| OUTSIDE DIAMETER | 16 mm |
| WIDTH | 9 mm |
| RECESSED SCREW | No |
| SCREW SIZE | M3 x .5 x 8MM |
| SCREW MATERIAL | 18-8 Stainless Steel |
| CAPACITIES | |
| SCREW SEATING TORQUE | 0.43 Nm |
| AXIAL HOLD | 465 N |
| APPLICATIONS | Ideal for Shaft positioning, Industrial machinery, Automation equipment, Conveyor systems, Robotics |
| BRAND | Stafford Manufacturing |
SKU:32SM006
6mm Stainless Steel (304) Metric Shaft Collar Two-Piece Clamp - Economy
- Regular price
- $6.23
- Sale price
- $6.23
