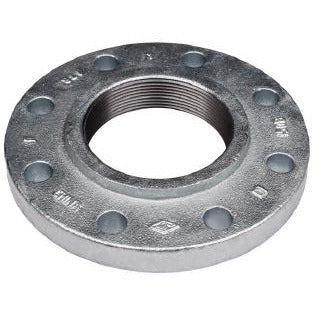

The 6 x 2 Ductile Iron Reducing Flange Galvanized is designed to connect a pipe in a flanged piping system. It ensures a secure, leak-free, and pressure-rated connection while allowing a smooth transition between different pipe sizes. The hot-dipped galvanized for enhanced corrosion resistance in harsh environments.
| Specification | Details |
|---|---|
| TYPE | Reducing Flange |
| DESIGN | Precision machined surface, ensures a tight, leak-proof seal |
| MATERIAL | Iron for superior strength and impact resistance |
| WEIGHT | 23.390 |
| ADDITIONAL INFORMATION | 9-1/2" Hole Center to Center |
| MATERIAL CONSTRUCTION | Ductile Iron |
| BOLT HOLE DIAMETER | 7/8" |
| CONNECTION SIZE 1 | 6" |
| CONNECTION SIZE 2 | 2" |
| CONNECTION TYPE | Threaded|Threaded |
| CONNECTION TYPE 1 | Threaded |
| CONNECTION TYPE 2 | Threaded |
| DIMENSIONS STANDARDS | ASME B16.42/AWWA C110, ASME B1.20. |
| DIMENSIONS | 11" OD x 1.56" H |
| FINISH | Galvanized |
| FITTING TYPE | Flange |
| FLANGE THICKNESS | 1" |
| NUMBER OF BOLT HOLES | 8 |
| PRESSURE CLASS | 125 lb |
| PRESSURE RATING | 150 psi |
| THREAD SIZE | #6-8 x 2-11-1/2 |
| CATALOG DESCRIPTION | 2 1/2 x 11 150 (Pipe Size 2-1/2 x 6) |
| SIZE | 2" x 11" |
| UNIT WEIGHT KG | 10.6349 |
| APPLICATIONS | Ideal for Water & Wastewater Systems, HVAC Systems, Industrial Processing, Fire Protection Systems, Oil & Gas Pipelines |
| BRAND | Midland Industries |
