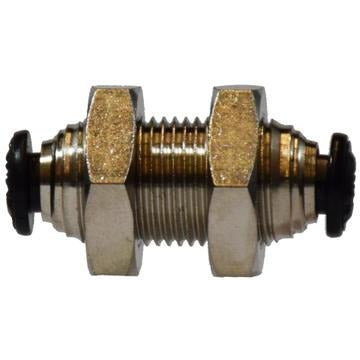

The 5mm Push-In Bulkhead Union Connector Nickel-Plated provides a secure and leak-proof connection in various fluid or air systems, and fits into both ends of the connector, allowing for easy installation and secure tool-free connections. The fitting typically features a threaded portion on the outer side, allowing it to be secured to the panel with a nut or washer, while the inner portion is used to insert and connect tubing.
| Specification | Value |
|---|---|
| TYPE | Push-In Bulkhead Union Connector |
| DESIGN | Push-In Design, for quick and tool-free installation. Bulkhead Style, ensure secure tubing through a panel or wall for organized routing. |
| MATERIAL |
Brass with nickel-plating, for durability and corrosion resistance. |
| MATERIAL CONSTRUCTION | Brass |
| WEIGHT (lbs) | 0.07 |
| CONNECTION SIZE 1 | 5 mm |
| CONNECTION SIZE 2 | 5 mm |
| CONNECTION TYPE | Push-to-Connect|Push-to-Connect |
| CONNECTION TYPE 1 | Push-to-Connect |
| CONNECTION TYPE 2 | Push-to-Connect |
| DIMENSIONS | 1.287" L |
| FINISH | Nickel-Plated |
| FITTING TYPE | Union |
| HEX SIZE | 0.663" |
| PRESSURE RATING | 290 psi |
| TEMPERATURE RATING | -4 to 176 deg F |
| THREAD SIZE | M14 x 1 |
| APPLICATIONS | Ideal for pneumatic systems, fluid or water handling, airlines, and other low-pressure systems. |
| BRAND | Midland Industries |
The 5mm Push-In Bulkhead Union Connector Nickel-Plated provides a secure and leak-proof connection in various fluid or air systems, and fits into both ends of the connector, allowing for easy installation and secure tool-free connections. The fitting typically features a threaded portion on the outer side, allowing it to be secured to the panel with a nut or washer, while the inner portion is used to insert and connect tubing.
| Specification | Value |
|---|---|
| TYPE | Push-In Bulkhead Union Connector |
| DESIGN | Push-In Design, for quick and tool-free installation. Bulkhead Style, ensure secure tubing through a panel or wall for organized routing. |
| MATERIAL |
Brass with nickel-plating, for durability and corrosion resistance. |
| MATERIAL CONSTRUCTION | Brass |
| WEIGHT (lbs) | 0.07 |
| CONNECTION SIZE 1 | 5 mm |
| CONNECTION SIZE 2 | 5 mm |
| CONNECTION TYPE | Push-to-Connect|Push-to-Connect |
| CONNECTION TYPE 1 | Push-to-Connect |
| CONNECTION TYPE 2 | Push-to-Connect |
| DIMENSIONS | 1.287" L |
| FINISH | Nickel-Plated |
| FITTING TYPE | Union |
| HEX SIZE | 0.663" |
| PRESSURE RATING | 290 psi |
| TEMPERATURE RATING | -4 to 176 deg F |
| THREAD SIZE | M14 x 1 |
| APPLICATIONS | Ideal for pneumatic systems, fluid or water handling, airlines, and other low-pressure systems. |
| BRAND | Midland Industries |
SKU:20733N
5mm Push-In Bulkhead Union Connector Nickel-Plated
- Regular price
- $12.46
- Sale price
- $12.46
