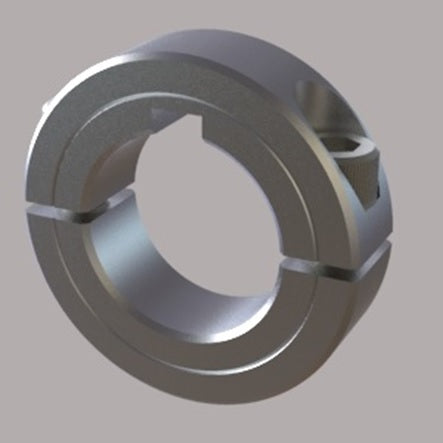

Heavy-duty black oxide steel two-piece clamp shaft collar with 10mm bore for secure positioning | 50mm Steel (Black Oxide) Metric Shaft Collar Two-Piece Clamp with Keyway | 2LM050HDK
    Heavy-duty black oxide steel two-piece clamp shaft collar with 10mm bore for secure positioning | 50mm Steel (Black Oxide) Metric Shaft Collar Two-Piece Clamp with Keyway | 2LM050HDK
Heavy-duty black oxide steel two-piece clamp shaft collar with 10mm bore for secure positioning | 50mm Steel (Black Oxide) Metric Shaft Collar Two-Piece Clamp with Keyway | 2LM050HDK
Heavy-duty black oxide steel two-piece clamp shaft collar with 10mm bore for secure positioning | 50mm Steel (Black Oxide) Metric Shaft Collar Two-Piece Clamp with Keyway | 2LM050HDK
    Heavy-duty black oxide steel two-piece clamp shaft collar with 10mm bore for secure positioning | 50mm Steel (Black Oxide) Metric Shaft Collar Two-Piece Clamp with Keyway | 2LM050HDK
Heavy-duty black oxide steel two-piece clamp shaft collar with 10mm bore for secure positioning | 50mm Steel (Black Oxide) Metric Shaft Collar Two-Piece Clamp with Keyway | 2LM050HDK
Description
The 50mm Steel (Black Oxide) Metric Shaft Collar Two-Piece Clamp with Keyway features a precision-machined two-piece clamp design with a keyway for secure positioning and easy installation anywhere along a shaft. Its smooth bore design prevents shaft damage, and the larger metric clamp screws deliver increased holding force for a strong, stable grip. Fully metric in design, including the clamping hardware, this heavy-duty collar is suitable for standard round shafts, hard or soft shafts, thin-wall tubing, and split hub assemblies. Stocked in both steel and stainless steel, with and without keyways.



SPECIFICATIONS DETAILS
PART NUMBER 2LM050HDK
TYPE Heavy Duty
DESIGN
Two-piece clamp design enables easy assembly and positioning anywhere on the shaft.
MATERIAL
Steel (Black Oxide) for improved corrosion resistance and surface protection
SERIES Signature
ALLOY 1215
FINISH Black Oxide
APPROXIMATE WEIGHT 1.14 lb
COUNTRY OF ORIGIN USA
UPC CODE 662786044649
ROHS2 COMPLIANT Yes
REACH COMPLIANT Yes

DIMENSIONAL ATTRIBUTES
BORE SIZE 50 mm
OUTSIDE DIAMETER 84 mm
WIDTH 22 mm
KEYWAY 14 mm
RECESSED SCREW No
SCREW SIZE M10 x 1.5 x 25MM
SCREW MATERIAL Alloy Steel

CAPACITIES
SCREW SEATING TORQUE 40.6 Nm
AXIAL HOLD 15150 N

APPLICATIONS
Ideal for automation equipment, robotics, conveyors, machinery, and linear motion systems.
BRAND Stafford Manufacturing


Description
The 50mm Steel (Black Oxide) Metric Shaft Collar Two-Piece Clamp with Keyway features a precision-machined two-piece clamp design with a keyway for secure positioning and easy installation anywhere along a shaft. Its smooth bore design prevents shaft damage, and the larger metric clamp screws deliver increased holding force for a strong, stable grip. Fully metric in design, including the clamping hardware, this heavy-duty collar is suitable for standard round shafts, hard or soft shafts, thin-wall tubing, and split hub assemblies. Stocked in both steel and stainless steel, with and without keyways.



SPECIFICATIONS DETAILS
PART NUMBER 2LM050HDK
TYPE Heavy Duty
DESIGN
Two-piece clamp design enables easy assembly and positioning anywhere on the shaft.
MATERIAL
Steel (Black Oxide) for improved corrosion resistance and surface protection
SERIES Signature
ALLOY 1215
FINISH Black Oxide
APPROXIMATE WEIGHT 1.14 lb
COUNTRY OF ORIGIN USA
UPC CODE 662786044649
ROHS2 COMPLIANT Yes
REACH COMPLIANT Yes

DIMENSIONAL ATTRIBUTES
BORE SIZE 50 mm
OUTSIDE DIAMETER 84 mm
WIDTH 22 mm
KEYWAY 14 mm
RECESSED SCREW No
SCREW SIZE M10 x 1.5 x 25MM
SCREW MATERIAL Alloy Steel

CAPACITIES
SCREW SEATING TORQUE 40.6 Nm
AXIAL HOLD 15150 N

APPLICATIONS
Ideal for automation equipment, robotics, conveyors, machinery, and linear motion systems.
BRAND Stafford Manufacturing


Stafford Manufacturing by Stafford Manufacturing

2LM050HDK

50mm Steel (Black Oxide) Metric Shaft Collar Two-Piece Clamp with Keyway

$66.14
$66.14
