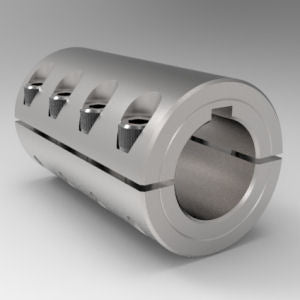

High-strength two-piece clamp rigid shaft coupling with keyway for secure shaft connection | 5/8" x 5/8" Aluminum Two-Piece Clamp Rigid Shaft Coupling with Keyway - Low Profile | 7A010010FK
    High-strength two-piece clamp rigid shaft coupling with keyway for secure shaft connection | 5/8" x 5/8" Aluminum Two-Piece Clamp Rigid Shaft Coupling with Keyway - Low Profile | 7A010010FK
High-strength two-piece clamp rigid shaft coupling with keyway for secure shaft connection | 5/8" x 5/8" Aluminum Two-Piece Clamp Rigid Shaft Coupling with Keyway - Low Profile | 7A010010FK
High-strength two-piece clamp rigid shaft coupling with keyway for secure shaft connection | 5/8" x 5/8" Aluminum Two-Piece Clamp Rigid Shaft Coupling with Keyway - Low Profile | 7A010010FK
    High-strength two-piece clamp rigid shaft coupling with keyway for secure shaft connection | 5/8" x 5/8" Aluminum Two-Piece Clamp Rigid Shaft Coupling with Keyway - Low Profile | 7A010010FK
High-strength two-piece clamp rigid shaft coupling with keyway for secure shaft connection | 5/8" x 5/8" Aluminum Two-Piece Clamp Rigid Shaft Coupling with Keyway - Low Profile | 7A010010FK
Description
The 5/8" x 5/8" Aluminum Two-Piece Clamp Rigid Shaft Coupling with Keyway - Low Profile is designed to securely connect two aligned shafts, allowing them to function as a single unit with zero backlash for precise torque transmission. Precision-machined from aluminum, it provides a lightweight and corrosion-resistant solution for reliable shaft coupling. Standard keyways provide added torque capacity and fixed shaft phasing, while the two-piece clamp design can be completely disassembled for convenient assembly and adjustment. Its non-marring construction and high clamping force provide secure shaft retention while protecting shaft surfaces from damage. Available with straight-through or stepped bores to accommodate different shaft configurations. Stocked In: Steel, Stainless Steel, Aluminum



SPECIFICATIONS

DETAILS
PART NUMBER 7A010010FK
TYPE Low Profile
DESIGN Two-piece clamp design allows convenient installation and adjustment
MATERIAL Aluminum construction provides excellent corrosion resistance, strength, and durability
APPROXIMATE WEIGHT 0.23 lb
ALLOY 2011
FINISH None
SERIES Signature
COUNTRY ORIGIN USA
UPC CODE 662786018138
ROHS2 COMPLIANT Yes
REACH COMPLIANT Yes
DIMENSIONAL ATTRIBUTES
BORE SIZE A 5/8 in
KEYWAY A 3/16 in
BORE SIZE B 5/8 in
KEYWAY B 3/16 in
OUTSIDE DIAMETER 1.313 in
TOTAL LENGTH 2.000 in
RECESSED SCREW No
SCREW SIZE 10-32 x 5/8 in
SCREW MATERIAL Alloy Steel
DISCLAIMER Stafford parts identified in the cross reference guide are the closest substitute offered and may not be an exact match. Dimensions or other elements critical to your application should be verified.
CAPACITIES
SCREW SEATING TORQUE 52 in-lb
AXIAL HOLD 788 lbs
APPLICATIONS Ideal for Precision Shaft Alignment, Motion Control Systems, Industrial Automation, Robotics, CNC Machinery, Servo-Driven Equipment, Precision Machinery, OEM Assemblies
BRAND Stafford Manufacturing

Description
The 5/8" x 5/8" Aluminum Two-Piece Clamp Rigid Shaft Coupling with Keyway - Low Profile is designed to securely connect two aligned shafts, allowing them to function as a single unit with zero backlash for precise torque transmission. Precision-machined from aluminum, it provides a lightweight and corrosion-resistant solution for reliable shaft coupling. Standard keyways provide added torque capacity and fixed shaft phasing, while the two-piece clamp design can be completely disassembled for convenient assembly and adjustment. Its non-marring construction and high clamping force provide secure shaft retention while protecting shaft surfaces from damage. Available with straight-through or stepped bores to accommodate different shaft configurations. Stocked In: Steel, Stainless Steel, Aluminum



SPECIFICATIONS

DETAILS
PART NUMBER 7A010010FK
TYPE Low Profile
DESIGN Two-piece clamp design allows convenient installation and adjustment
MATERIAL Aluminum construction provides excellent corrosion resistance, strength, and durability
APPROXIMATE WEIGHT 0.23 lb
ALLOY 2011
FINISH None
SERIES Signature
COUNTRY ORIGIN USA
UPC CODE 662786018138
ROHS2 COMPLIANT Yes
REACH COMPLIANT Yes
DIMENSIONAL ATTRIBUTES
BORE SIZE A 5/8 in
KEYWAY A 3/16 in
BORE SIZE B 5/8 in
KEYWAY B 3/16 in
OUTSIDE DIAMETER 1.313 in
TOTAL LENGTH 2.000 in
RECESSED SCREW No
SCREW SIZE 10-32 x 5/8 in
SCREW MATERIAL Alloy Steel
DISCLAIMER Stafford parts identified in the cross reference guide are the closest substitute offered and may not be an exact match. Dimensions or other elements critical to your application should be verified.
CAPACITIES
SCREW SEATING TORQUE 52 in-lb
AXIAL HOLD 788 lbs
APPLICATIONS Ideal for Precision Shaft Alignment, Motion Control Systems, Industrial Automation, Robotics, CNC Machinery, Servo-Driven Equipment, Precision Machinery, OEM Assemblies
BRAND Stafford Manufacturing

Stafford Manufacturing by Stafford Manufacturing

7A010010FK

5/8" x 5/8" Aluminum Two-Piece Clamp Rigid Shaft Coupling with Keyway - Low Profile

$165.00
$165.00
