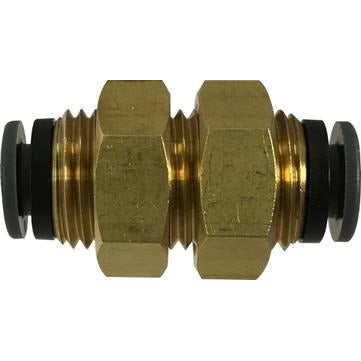

The 5/32 Push-In Tube DOT Composite Bulkhead Union is a robust, high-performance fitting designed to provide secure, leak-free connections through bulkheads in pneumatic systems. This composite bulkhead union, compliant with D.O.T. and SAE standards, features a one-touch connection that reduces installation time and a UV- and vibration-resistant composite body for long-lasting performance.
Order now for fast shipping and professional-grade results.
| Specification | Details |
|---|---|
| TYPE | Tube DOT Composite Bulkhead |
| DESIGN |
Bulkhead Design allows easy routing of tubing through panels or walls, ideal for applications where connections need to pass through a bulkhead. |
| MATERIAL | Brass for long-lasting and reliability |
| MATERIAL CONSTRUCTION | Brass |
|
WEIGHT (lbs) |
0.065 |
| CONNECTION SIZE 1 | 5/32" |
| CONNECTION SIZE 2 | 5/32" |
| CONNECTION TYPE | Push-to-Connect|Push-to-Connect |
| CONNECTION TYPE 1 | Push-to-Connect |
| CONNECTION TYPE 2 | Push-to-Connect |
| FITTING TYPE | Union |
| TEMPERATURE RATING | -40 to 140 deg F |
| PRESSURE RATING | 145 psi |
| THREAD SIZE | 1/2-20 UNF |
| TUBE OD | 5/32" |
|
MAXIMUM OPERATING PRESSURE
|
145 psi |
| OPERATING TEMPERATURE | -40 to 140 deg F |
| STANDARD APPROVALS | DOT FMVSS 49 CFR 571.106|SAE J2494-3 |
| APPLICATIONS | Ideal for Fluid, Pneumatic, Hydraulic, and HVAC Systems |
| BRAND | Midland Industries |
Link to Midland Industries Catalog
The 5/32 Push-In Tube DOT Composite Bulkhead Union is a robust, high-performance fitting designed to provide secure, leak-free connections through bulkheads in pneumatic systems. This composite bulkhead union, compliant with D.O.T. and SAE standards, features a one-touch connection that reduces installation time and a UV- and vibration-resistant composite body for long-lasting performance.
Order now for fast shipping and professional-grade results.
| Specification | Details |
|---|---|
| TYPE | Tube DOT Composite Bulkhead |
| DESIGN |
Bulkhead Design allows easy routing of tubing through panels or walls, ideal for applications where connections need to pass through a bulkhead. |
| MATERIAL | Brass for long-lasting and reliability |
| MATERIAL CONSTRUCTION | Brass |
|
WEIGHT (lbs) |
0.065 |
| CONNECTION SIZE 1 | 5/32" |
| CONNECTION SIZE 2 | 5/32" |
| CONNECTION TYPE | Push-to-Connect|Push-to-Connect |
| CONNECTION TYPE 1 | Push-to-Connect |
| CONNECTION TYPE 2 | Push-to-Connect |
| FITTING TYPE | Union |
| TEMPERATURE RATING | -40 to 140 deg F |
| PRESSURE RATING | 145 psi |
| THREAD SIZE | 1/2-20 UNF |
| TUBE OD | 5/32" |
|
MAXIMUM OPERATING PRESSURE
|
145 psi |
| OPERATING TEMPERATURE | -40 to 140 deg F |
| STANDARD APPROVALS | DOT FMVSS 49 CFR 571.106|SAE J2494-3 |
| APPLICATIONS | Ideal for Fluid, Pneumatic, Hydraulic, and HVAC Systems |
| BRAND | Midland Industries |
Link to Midland Industries Catalog
SKU:825320C
5/32 Tube DOT Composite Bulkhead
- Regular price
- $48.43
- Sale price
- $48.43
