The 5/16" Inverted Flare x 5/16" Inverted Flare x 1/8" Female Iron Pipe Branch Tee is a reliable fitting designed to branch fluid or gas flow. It features two 5/16" inverted flare connections and one 1/8" female iron pipe thread, making it ideal for use in hydraulic, pneumatic, fuel, and plumbing systems. This fitting ensures leak-resistant connections and is built for medium-pressure applications, offering durability and performance across a variety of industrial systems.
|
Specification |
Details |
|
TYPE |
Inverted Flare x Female Iron Pipe Branch Tee |
|
DESIGN |
Tee configuration design ensures a reliable, leak-free branching connection. |
|
MATERIAL |
Brass for durability, corrosion resistance, and compatibility |
|
MATERIAL CONSTRUCTION |
Brass |
|
ADDITIONAL INFORMATION |
0.45 x 0.63" Center to End |
|
TUBE WALL |
0.032" |
|
WEIGHT (LBS) |
0.120 |
|
CONNECTION SIZE 1 |
5/16" |
|
CONNECTION SIZE 2 |
5/16" |
|
CONNECTION SIZE 3 |
1/8" |
|
CONNECTION TYPE |
Female Inverted Flared|Female Inverted Flared|FNPT |
|
CONNECTION TYPE 1 |
Female Inverted Flared |
|
CONNECTION TYPE 2 |
Female Inverted Flared |
|
CONNECTION TYPE 3 |
FNPTF |
|
FOR USE WITH |
Aluminum, Brass, Copper, and Steel Hydraulic Tubing |
|
FITTING TYPE |
Tee |
|
DIMENSIONS |
1.26" L x 0.59" W" |
|
PRESSURE RATING |
1200 psi |
|
TEMPERATURE RATING |
-65 to 250 deg F |
|
THREAD SIZE |
1/2-20 x 1/8-27 |
|
SAE# |
SAE# 040427 |
|
APPLICATIONS |
Ideal for hydraulic systems, fuel lines, pneumatic systems, refrigeration and hvac systems. |
|
BRAND |
Midland Industries |
The 5/16" Inverted Flare x 5/16" Inverted Flare x 1/8" Female Iron Pipe Branch Tee is a reliable fitting designed to branch fluid or gas flow. It features two 5/16" inverted flare connections and one 1/8" female iron pipe thread, making it ideal for use in hydraulic, pneumatic, fuel, and plumbing systems. This fitting ensures leak-resistant connections and is built for medium-pressure applications, offering durability and performance across a variety of industrial systems.
|
Specification |
Details |
|
TYPE |
Inverted Flare x Female Iron Pipe Branch Tee |
|
DESIGN |
Tee configuration design ensures a reliable, leak-free branching connection. |
|
MATERIAL |
Brass for durability, corrosion resistance, and compatibility |
|
MATERIAL CONSTRUCTION |
Brass |
|
ADDITIONAL INFORMATION |
0.45 x 0.63" Center to End |
|
TUBE WALL |
0.032" |
|
WEIGHT (LBS) |
0.120 |
|
CONNECTION SIZE 1 |
5/16" |
|
CONNECTION SIZE 2 |
5/16" |
|
CONNECTION SIZE 3 |
1/8" |
|
CONNECTION TYPE |
Female Inverted Flared|Female Inverted Flared|FNPT |
|
CONNECTION TYPE 1 |
Female Inverted Flared |
|
CONNECTION TYPE 2 |
Female Inverted Flared |
|
CONNECTION TYPE 3 |
FNPTF |
|
FOR USE WITH |
Aluminum, Brass, Copper, and Steel Hydraulic Tubing |
|
FITTING TYPE |
Tee |
|
DIMENSIONS |
1.26" L x 0.59" W" |
|
PRESSURE RATING |
1200 psi |
|
TEMPERATURE RATING |
-65 to 250 deg F |
|
THREAD SIZE |
1/2-20 x 1/8-27 |
|
SAE# |
SAE# 040427 |
|
APPLICATIONS |
Ideal for hydraulic systems, fuel lines, pneumatic systems, refrigeration and hvac systems. |
|
BRAND |
Midland Industries |
SKU:12129

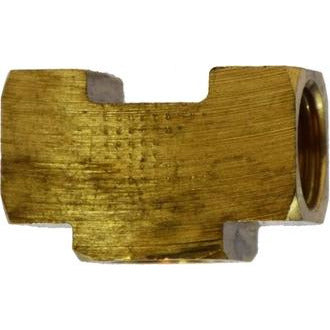

5/16" Inverted Flare x 5/16" Inverted Flare x 1/8" Female Iron Pipe Branch Tee
- Regular price
- $56.14
- Sale price
- $56.14
