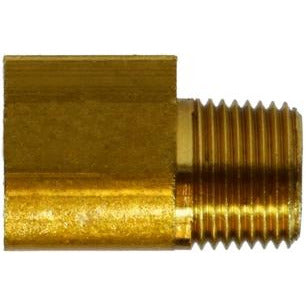

The 5/16" x 1/8" Female Inverted Flare x Male Iron Pipe 90 deg Elbow is a reliable fitting designed to change the direction of fluid or gas flow at a 90-degree angle. One end features a 5/16" female inverted flare connection, providing a secure, leak-resistant seal, while the other end has a 1/8" male iron pipe thread, allowing easy connection to female-threaded components. This elbow is perfect for use in hydraulic, pneumatic, and fluid transfer systems, offering a durable, space-saving solution for directing flow in applications where precise control is required.
| Specification | Details |
|---|---|
| TYPE | Female Inverted Flare X MIP Elbow |
| DESIGN | 90° Elbow Design for smooth redirection of fluid or gas flow in tight spaces and ensuring a secure, leak-proof attachment. |
| MATERIAL |
Brass for corrosion resistance, ease of machining, and reliable performance in fluid and gas system. |
| MATERIAL CONSTRUCTION | Brass |
| ADDITIONAL INFORMATION | 0.47 x 0.68" Center to End |
| TUBE WALL | 0.032" |
|
WEIGHT (LBS) |
0.050 |
| CONNECTION SIZE 1 | 5/16" |
| CONNECTION SIZE 2 | 1/8" |
| CONNECTION TYPE | Female Inverted Flared|MNPT |
| CONNECTION TYPE 1 | Female Inverted Flared |
| CONNECTION TYPE 2 | MNPTF |
| FITTING TYPE | 90 deg Elbow |
| FOR USE WITH | Aluminum, Brass, Copper, Steel Hydraulic Tubing |
| THREAD SIZE | 1/2-20 x 1/8-27 |
| PRESSURE RATING | 1200 psi |
| TEMPERATURE RATING |
-65 to 250 deg F |
| SAE# |
040202 |
| APPLICATIONS | Ideal for Hydraulic, Pneumatic and HVAC Systems |
| BRAND | Midland Industries |
The 5/16" x 1/8" Female Inverted Flare x Male Iron Pipe 90 deg Elbow is a reliable fitting designed to change the direction of fluid or gas flow at a 90-degree angle. One end features a 5/16" female inverted flare connection, providing a secure, leak-resistant seal, while the other end has a 1/8" male iron pipe thread, allowing easy connection to female-threaded components. This elbow is perfect for use in hydraulic, pneumatic, and fluid transfer systems, offering a durable, space-saving solution for directing flow in applications where precise control is required.
| Specification | Details |
|---|---|
| TYPE | Female Inverted Flare X MIP Elbow |
| DESIGN | 90° Elbow Design for smooth redirection of fluid or gas flow in tight spaces and ensuring a secure, leak-proof attachment. |
| MATERIAL |
Brass for corrosion resistance, ease of machining, and reliable performance in fluid and gas system. |
| MATERIAL CONSTRUCTION | Brass |
| ADDITIONAL INFORMATION | 0.47 x 0.68" Center to End |
| TUBE WALL | 0.032" |
|
WEIGHT (LBS) |
0.050 |
| CONNECTION SIZE 1 | 5/16" |
| CONNECTION SIZE 2 | 1/8" |
| CONNECTION TYPE | Female Inverted Flared|MNPT |
| CONNECTION TYPE 1 | Female Inverted Flared |
| CONNECTION TYPE 2 | MNPTF |
| FITTING TYPE | 90 deg Elbow |
| FOR USE WITH | Aluminum, Brass, Copper, Steel Hydraulic Tubing |
| THREAD SIZE | 1/2-20 x 1/8-27 |
| PRESSURE RATING | 1200 psi |
| TEMPERATURE RATING |
-65 to 250 deg F |
| SAE# |
040202 |
| APPLICATIONS | Ideal for Hydraulic, Pneumatic and HVAC Systems |
| BRAND | Midland Industries |
SKU:12061
5/16 X 1/8 Female Inverted Flare X Male Iron Pipe Elbow
- Regular price
- $3.52
- Sale price
- $3.52
