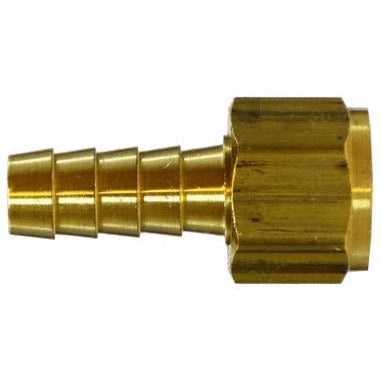

The 5/16" x 1/4" Hose Barb x Female Gasket Swivel Adapter is a compact and reliable fitting, designed to securely connect hoses with a 5/16" barb and a 1/4" female threaded connection. The built-in gasket ensures a leak-resistant seal, while the swivel feature allows for easy rotation, preventing strain on hoses. Ideal for both pneumatic and plumbing applications, it provides flexibility and durability in fluid and air systems.
| Specification | Details |
|---|---|
| TYPE | Hose Barb X Female Gasket Swivel |
| DESIGN | Swivel Design allows easy, resistance-free movement during installation and smooth rotation |
| MATERIAL | Brass for durability and corrosion resistance |
|
MATERIAL CONSTRUCTION |
Brass |
| WEIGHT (LBS) | 0.040 |
| CONNECTION SIZE 1 | 5/16" |
| CONNECTION SIZE 1 | 1/4" |
| CONNECTION TYPE | Barbed|FNPSM Swivel |
| CONNECTION TYPE 1 | Hose Barbed |
| CONNECTION TYPE 2 | FNPSM Gasket Swivel |
| FITTING TYPE | Adapter |
| FOR USE WITH | Hose Clamp, Similar Type Clamp or A Crimped Ferrules |
| THREAD SIZE | 1/4-18 |
| MAXIMUM OPERATING PRESSURE | 150 psi |
| OPERATING TEMPERATURE |
-40 to 160 deg F |
| SUBHEADING | • NPSM Thread National Pipe Straight Gasket Seal Swivel |
| DIMENSIONS | 1.63" L |
| BARB LENGTH | 0.97" |
| NOTES | • Not recommend for water due to fiber gasket - for air service only |
| HEX | 0.75" |
| SHAPE |
Straight/Connector |
| APPLICATIONS | Ideal for gas lines, hydraulic systems, automotive applications and pneumatic systems |
| BRAND | Midland Industries |
The 5/16" x 1/4" Hose Barb x Female Gasket Swivel Adapter is a compact and reliable fitting, designed to securely connect hoses with a 5/16" barb and a 1/4" female threaded connection. The built-in gasket ensures a leak-resistant seal, while the swivel feature allows for easy rotation, preventing strain on hoses. Ideal for both pneumatic and plumbing applications, it provides flexibility and durability in fluid and air systems.
| Specification | Details |
|---|---|
| TYPE | Hose Barb X Female Gasket Swivel |
| DESIGN | Swivel Design allows easy, resistance-free movement during installation and smooth rotation |
| MATERIAL | Brass for durability and corrosion resistance |
|
MATERIAL CONSTRUCTION |
Brass |
| WEIGHT (LBS) | 0.040 |
| CONNECTION SIZE 1 | 5/16" |
| CONNECTION SIZE 1 | 1/4" |
| CONNECTION TYPE | Barbed|FNPSM Swivel |
| CONNECTION TYPE 1 | Hose Barbed |
| CONNECTION TYPE 2 | FNPSM Gasket Swivel |
| FITTING TYPE | Adapter |
| FOR USE WITH | Hose Clamp, Similar Type Clamp or A Crimped Ferrules |
| THREAD SIZE | 1/4-18 |
| MAXIMUM OPERATING PRESSURE | 150 psi |
| OPERATING TEMPERATURE |
-40 to 160 deg F |
| SUBHEADING | • NPSM Thread National Pipe Straight Gasket Seal Swivel |
| DIMENSIONS | 1.63" L |
| BARB LENGTH | 0.97" |
| NOTES | • Not recommend for water due to fiber gasket - for air service only |
| HEX | 0.75" |
| SHAPE |
Straight/Connector |
| APPLICATIONS | Ideal for gas lines, hydraulic systems, automotive applications and pneumatic systems |
| BRAND | Midland Industries |
SKU:32130
5/16 X 1/4 Hose Barb X Female Gasket Swivel
- Regular price
- $22.71
- Sale price
- $22.71
