The 5/16" Female Inverted Flare x 3/8" Male Iron Pipe 90 deg Elbow is a high-quality 90-degree fitting designed to connect a 5/16" inverted flare fitting with a 3/8" male iron pipe thread. This durable elbow is ideal for applications requiring secure, leak-resistant connections in hydraulic, pneumatic, and fuel systems. Its compact design allows for a sharp turn in the piping or hose system, making it a versatile solution for a range of fluid and gas applications.
|
Specification |
Details |
|
TYPE |
Inverted Flare x Male Iron Pipe Elbow |
|
DESIGN |
90° elbow saves space and redirects flow |
|
MATERIAL |
Brass for durability, corrosion resistance, and compatibility |
|
MATERIAL CONSTRUCTION |
Brass |
| ADDITIONAL INFORMATION |
0.47 x 0.86" Center to End |
|
TUBE WALL |
0.032 |
|
WEIGHT (LBS) |
0.00 |
|
CONNECTION SIZE 1 |
5/16" |
|
CONNECTION SIZE 2 |
3/8" |
|
CONNECTION TYPE |
Female Inverted Flared|MNPT |
|
CONNECTION TYPE 1 |
Female Inverted Flared |
|
CONNECTION TYPE 2 |
MNPTF |
|
FOR USE WITH |
Aluminum, Brass, Copper, and Steel Hydraulic Tubing |
|
FITTING TYPE |
90 deg Elbow |
|
MAXIMUM OPERATING PRESSURE |
1200 psi |
|
OPERATING TEMPERATURE |
-65 to 250 deg F |
|
THREAD SIZE |
1/2-20 x 3/8-18 |
|
SAE # |
040202 |
|
APPLICATIONS |
Ideal for hydraulic systems, fuel lines, pneumatic systems and air conditioning and refrigeration |
|
BRAND |
Midland Industries |
The 5/16" Female Inverted Flare x 3/8" Male Iron Pipe 90 deg Elbow is a high-quality 90-degree fitting designed to connect a 5/16" inverted flare fitting with a 3/8" male iron pipe thread. This durable elbow is ideal for applications requiring secure, leak-resistant connections in hydraulic, pneumatic, and fuel systems. Its compact design allows for a sharp turn in the piping or hose system, making it a versatile solution for a range of fluid and gas applications.
|
Specification |
Details |
|
TYPE |
Inverted Flare x Male Iron Pipe Elbow |
|
DESIGN |
90° elbow saves space and redirects flow |
|
MATERIAL |
Brass for durability, corrosion resistance, and compatibility |
|
MATERIAL CONSTRUCTION |
Brass |
| ADDITIONAL INFORMATION |
0.47 x 0.86" Center to End |
|
TUBE WALL |
0.032 |
|
WEIGHT (LBS) |
0.00 |
|
CONNECTION SIZE 1 |
5/16" |
|
CONNECTION SIZE 2 |
3/8" |
|
CONNECTION TYPE |
Female Inverted Flared|MNPT |
|
CONNECTION TYPE 1 |
Female Inverted Flared |
|
CONNECTION TYPE 2 |
MNPTF |
|
FOR USE WITH |
Aluminum, Brass, Copper, and Steel Hydraulic Tubing |
|
FITTING TYPE |
90 deg Elbow |
|
MAXIMUM OPERATING PRESSURE |
1200 psi |
|
OPERATING TEMPERATURE |
-65 to 250 deg F |
|
THREAD SIZE |
1/2-20 x 3/8-18 |
|
SAE # |
040202 |
|
APPLICATIONS |
Ideal for hydraulic systems, fuel lines, pneumatic systems and air conditioning and refrigeration |
|
BRAND |
Midland Industries |
SKU:12082

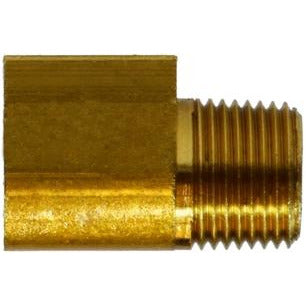

5/16" Inverted Flare x 3/8" Male Iron Pipe Elbow
- Regular price
- $30.51
- Sale price
- $30.51
