Description

The 5/16 Female Inverted Flare Union Tee is a high-quality fitting designed to create a secure and leak-free connection in fluid and brake systems. Featuring a durable female inverted flare design, this tee fitting allows for the smooth distribution of fluid or gas between three connecting lines while maintaining system integrity.

Specification Details
TYPE Female Inverted Flare Union Tee
DESIGN Durable Construction made from high-quality materials like brass or steel, the Tee is built to withstand the pressures and stresses of braking systems, offering long-lasting durability and reliable performance.
MATERIAL Brass combines lightweight durability and corrosion resistance
MATERIAL CONSTRUCTION Brass
TUBE WALL THICKNESS 0.032"
ADDITIONAL INFORMATION 0.45" Center to Flare End, 0.63" Center to End
WEIGHT (lbs)
 0.090 lb
CONNECTION SIZE 1  5/16"
CONNECTION SIZE 2 5/16"
CONNECTION SIZE 3  5/16"
CONNECTION TYPE Inverted Flared|Inverted Flared|Inverted Flared
CONNECTION TYPE 1 Inverted Flared
CONNECTION TYPE 2 Inverted Flared
CONNECTION TYPE 3 Inverted Flared
FITTING TYPE Tee
FOR USE WITH Aluminum, Brass, Copper, and Steel Hydraulic Tubing
PRESSURE RATING 1200 psi
TEMPERATURE RATING -65 to 250 deg F
THREAD SIZE 1/2-20
SAE# 040401
APPLICATIONS Ideal for

Pneumatic, Automotive Systems, Hydraulic, Industrial and HVAC
BRAND Midland Industries



Link to Midland Industries Catalog

Description

The 5/16 Female Inverted Flare Union Tee is a high-quality fitting designed to create a secure and leak-free connection in fluid and brake systems. Featuring a durable female inverted flare design, this tee fitting allows for the smooth distribution of fluid or gas between three connecting lines while maintaining system integrity.

Specification Details
TYPE Female Inverted Flare Union Tee
DESIGN Durable Construction made from high-quality materials like brass or steel, the Tee is built to withstand the pressures and stresses of braking systems, offering long-lasting durability and reliable performance.
MATERIAL Brass combines lightweight durability and corrosion resistance
MATERIAL CONSTRUCTION Brass
TUBE WALL THICKNESS 0.032"
ADDITIONAL INFORMATION 0.45" Center to Flare End, 0.63" Center to End
WEIGHT (lbs)
 0.090 lb
CONNECTION SIZE 1  5/16"
CONNECTION SIZE 2 5/16"
CONNECTION SIZE 3  5/16"
CONNECTION TYPE Inverted Flared|Inverted Flared|Inverted Flared
CONNECTION TYPE 1 Inverted Flared
CONNECTION TYPE 2 Inverted Flared
CONNECTION TYPE 3 Inverted Flared
FITTING TYPE Tee
FOR USE WITH Aluminum, Brass, Copper, and Steel Hydraulic Tubing
PRESSURE RATING 1200 psi
TEMPERATURE RATING -65 to 250 deg F
THREAD SIZE 1/2-20
SAE# 040401
APPLICATIONS Ideal for

Pneumatic, Automotive Systems, Hydraulic, Industrial and HVAC
BRAND Midland Industries



Link to Midland Industries Catalog

Midland Industries by Midland Industries

12088

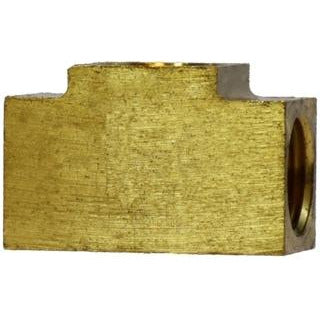

5/16 Female Inverted Flare Union Tee

$13.48
$13.48
