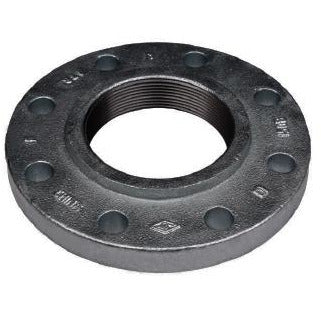

The 4" x 2-1/2" Ductile Iron Reducing Flange is a precision-machined flange designed to connect a 4-inch pipe to a 2-1/2-inch pipe within a piping system. It ensures a secure, leak-free transition between different pipe sizes, maintaining system integrity and optimal pressure-handling capabilities.
| Specification | Details |
|---|---|
| TYPE | Reducing Flange |
| DESIGN | Precision machined surface — ensures a tight, leak-proof seal |
| MATERIAL | Ductile Iron — superior strength and impact resistance |
| WEIGHT (LBS) | 13.930 |
| CONNECTION SIZE 1 | 4" |
| CONNECTION SIZE 2 | 2-1/2" |
| CONNECTION TYPE | Threaded x Threaded |
| DIMENSIONS | 9" OD x 1.31" H |
| FLANGE THICKNESS | 0.94" |
| BOLT HOLE DIAMETER | 3/4" |
| NUMBER OF BOLT HOLES | 8 |
| HOLE CENTER TO CENTER | 7-1/2" |
| PRESSURE CLASS | 125 lb |
| PRESSURE RATING | 150 psi |
| FINISH | Black |
| DIMENSION STANDARDS | ASME B16.42/AWWA C110, ASME B1.20 |
| APPLICATIONS | Water & Wastewater Systems, HVAC, Industrial Processing, Fire Protection, Oil & Gas Pipelines |
| BRAND | Midland Industries |
The 4" x 2-1/2" Ductile Iron Reducing Flange is a precision-machined flange designed to connect a 4-inch pipe to a 2-1/2-inch pipe within a piping system. It ensures a secure, leak-free transition between different pipe sizes, maintaining system integrity and optimal pressure-handling capabilities.
| Specification | Details |
|---|---|
| TYPE | Reducing Flange |
| DESIGN | Precision machined surface — ensures a tight, leak-proof seal |
| MATERIAL | Ductile Iron — superior strength and impact resistance |
| WEIGHT (LBS) | 13.930 |
| CONNECTION SIZE 1 | 4" |
| CONNECTION SIZE 2 | 2-1/2" |
| CONNECTION TYPE | Threaded x Threaded |
| DIMENSIONS | 9" OD x 1.31" H |
| FLANGE THICKNESS | 0.94" |
| BOLT HOLE DIAMETER | 3/4" |
| NUMBER OF BOLT HOLES | 8 |
| HOLE CENTER TO CENTER | 7-1/2" |
| PRESSURE CLASS | 125 lb |
| PRESSURE RATING | 150 psi |
| FINISH | Black |
| DIMENSION STANDARDS | ASME B16.42/AWWA C110, ASME B1.20 |
| APPLICATIONS | Water & Wastewater Systems, HVAC, Industrial Processing, Fire Protection, Oil & Gas Pipelines |
| BRAND | Midland Industries |
SKU:108089
4 x 2-1/2 Ductile Iron Reducing Flange
- Regular price
- $140.13
- Sale price
- $140.13
