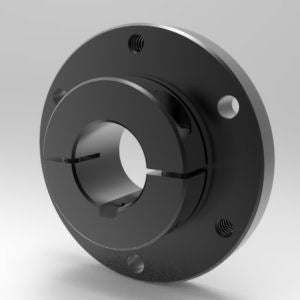

35mm Metric Accu-Flange™ Shaft Mounting Collar, Steel
    35mm Metric Accu-Flange™ Shaft Mounting Collar, Steel
35mm Metric Accu-Flange™ Shaft Mounting Collar, Steel
35mm Metric Accu-Flange™ Shaft Mounting Collar, Steel
    35mm Metric Accu-Flange™ Shaft Mounting Collar, Steel
35mm Metric Accu-Flange™ Shaft Mounting Collar, Steel
Description
isclaimer: Stafford parts identified as cross referenced to these listings are the closest substitute offered. In some cases they may not be an exact dimensional or material match. It is the responsibility of the user to determine the suitability of the Stafford part for the intended purpose. Contact Stafford if you have questions or concerns.




Specifications

Part Number

1LM035AFXK

Series

Solution

Material

Steel

Alloy

1117

Finish

Black Oxide

Approximate Weight

1.06 lb

Country of Origin

USA

UPC Code

662786021831

RoHS2 Compliant

Yes

REACH Compliant

Yes



Dimensional Attributes

Bore Size

35 mm

Keyway

10 mm

Flange OD

88 mm

Width

25 mm

Flange Width

7.94 mm

Screw Size

M6 x 1.0 x 18MM

Screw Material

Alloy Steel

Mounting Hole A

6.4 mm

Mounting Hole B

M6
Description
isclaimer: Stafford parts identified as cross referenced to these listings are the closest substitute offered. In some cases they may not be an exact dimensional or material match. It is the responsibility of the user to determine the suitability of the Stafford part for the intended purpose. Contact Stafford if you have questions or concerns.




Specifications

Part Number

1LM035AFXK

Series

Solution

Material

Steel

Alloy

1117

Finish

Black Oxide

Approximate Weight

1.06 lb

Country of Origin

USA

UPC Code

662786021831

RoHS2 Compliant

Yes

REACH Compliant

Yes



Dimensional Attributes

Bore Size

35 mm

Keyway

10 mm

Flange OD

88 mm

Width

25 mm

Flange Width

7.94 mm

Screw Size

M6 x 1.0 x 18MM

Screw Material

Alloy Steel

Mounting Hole A

6.4 mm

Mounting Hole B

M6
STAFFORD MANUFACTURING CORP. by STAFFORD MANUFACTURING CORP.

Translation missing: en.products.product.sku:1LM035AFXK

35mm Metric Accu-Flange™ Shaft Mounting Collar, Steel

Regular price
$102.40
Sale price
$102.40
Regular price
