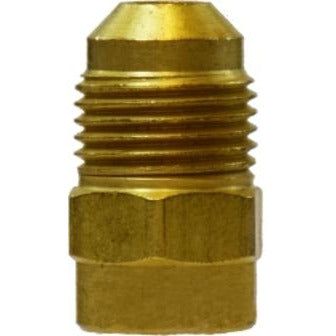

The 3/8 X 5/8 Male Flare X Female Flare Adapter is a precision-engineered fitting designed to seamlessly connect two flare-style tubing components while ensuring a secure, leak-proof seal. Featuring a male flare end on one side and a female flare end on the other, this adapter allows for easy extension, redirection, or modification of existing flare connections.
| Specification | Details |
|---|---|
| TYPE | Female Flare Adapter |
| DESIGN |
Leak-Proof Connection designed to provide a tight, compression-sealed joint between two flare fittings, preventing leaks in fluid and gas systems. |
| MATERIAL | Brass combines lightweight durability and corrosion resistance |
| MATERIAL CONSTRUCTION | Brass |
|
WEIGHT (lbs) |
0.016 lb |
| ADDITIONAL INFORMATION | 0.035 in Tube Wall Thickness |
| CONNECTION SIZE 1 | 3/8" |
| CONNECTION SIZE 2 | 5/8" |
| CONNECTION TYPE | Male SAE Flared|Female SAE Flared |
| CONNECTION TYPE 1 | SAE 45 deg Male Flared |
| CONNECTION TYPE 2 | SAE 45 deg Female Flared |
| DIMENSIONS | 1.63" L |
| FITTING TYPE | Adapter |
| FOR USE WITH | Aluminum, Brass, Copper, Steel Hydraulic Tubing That Can Be Flared |
| HEX SIZE | 1.12" |
| PRESSURE RATING | 650 psi |
| TEMPERATURE RATING | -65 to 250 deg F |
| THREAD SIZE | 5/8-18 x 7/8-18 |
| SUBHEADING | SAE# 010105 |
| SHAPE | Reducer |
| BRAND | Midland Industries |
The 3/8 X 5/8 Male Flare X Female Flare Adapter is a precision-engineered fitting designed to seamlessly connect two flare-style tubing components while ensuring a secure, leak-proof seal. Featuring a male flare end on one side and a female flare end on the other, this adapter allows for easy extension, redirection, or modification of existing flare connections.
| Specification | Details |
|---|---|
| TYPE | Female Flare Adapter |
| DESIGN |
Leak-Proof Connection designed to provide a tight, compression-sealed joint between two flare fittings, preventing leaks in fluid and gas systems. |
| MATERIAL | Brass combines lightweight durability and corrosion resistance |
| MATERIAL CONSTRUCTION | Brass |
|
WEIGHT (lbs) |
0.016 lb |
| ADDITIONAL INFORMATION | 0.035 in Tube Wall Thickness |
| CONNECTION SIZE 1 | 3/8" |
| CONNECTION SIZE 2 | 5/8" |
| CONNECTION TYPE | Male SAE Flared|Female SAE Flared |
| CONNECTION TYPE 1 | SAE 45 deg Male Flared |
| CONNECTION TYPE 2 | SAE 45 deg Female Flared |
| DIMENSIONS | 1.63" L |
| FITTING TYPE | Adapter |
| FOR USE WITH | Aluminum, Brass, Copper, Steel Hydraulic Tubing That Can Be Flared |
| HEX SIZE | 1.12" |
| PRESSURE RATING | 650 psi |
| TEMPERATURE RATING | -65 to 250 deg F |
| THREAD SIZE | 5/8-18 x 7/8-18 |
| SUBHEADING | SAE# 010105 |
| SHAPE | Reducer |
| BRAND | Midland Industries |
SKU:10473
3/8 X 5/8 Male Flare X Female Flare Adapter
- Regular price
- $27.97
- Sale price
- $27.97
