Description

The 3/8 x 5/16 Push-On Hose Barbed x Dual Swivel is a high-performance fitting designed to provide flexibility and a secure connection between two different-sized hoses while allowing dual swivel movement for easy installation and reduced hose strain. This adapter is ideal for fuel, pneumatic, hydraulic, and fluid transfer applications, where movement and secure, leak-proof connections are required.

Specification Details
TYPE Female Flare Swivel Adapter
DESIGN Dual swivel mechanism for easy alignment, prevents hose twisting, and reduces wear
MATERIAL Brass for durability and corrosion resistance
MATERIAL CONSTRUCTION Brass
WEIGHT (LBS)
 0.060
CONNECTION SIZE 1 3/8"
CONNECTION SIZE 2 5/16"
CONNECTION TYPE Barbed|Female JIC Swivel
CONNECTION TYPE 1 Push-On Hose Barbed
CONNECTION TYPE 2
 Female 45 deg SAE/37 deg JIC Swivel
DIMENSIONS 2.33" Length
FITTING TYPE Connector
HEX SIZE 1"
MAXIMUM OPERATING PRESSURE 150 psi
THREAD SIZE 7/8-14
BARB LENGTH 0.87"
APPLICATIONS Ideal for hydraulic, pneumatic, fuel systems, and industrial applications
BRAND Midland Industries


Description

The 3/8 x 5/16 Push-On Hose Barbed x Dual Swivel is a high-performance fitting designed to provide flexibility and a secure connection between two different-sized hoses while allowing dual swivel movement for easy installation and reduced hose strain. This adapter is ideal for fuel, pneumatic, hydraulic, and fluid transfer applications, where movement and secure, leak-proof connections are required.

Specification Details
TYPE Female Flare Swivel Adapter
DESIGN Dual swivel mechanism for easy alignment, prevents hose twisting, and reduces wear
MATERIAL Brass for durability and corrosion resistance
MATERIAL CONSTRUCTION Brass
WEIGHT (LBS)
 0.060
CONNECTION SIZE 1 3/8"
CONNECTION SIZE 2 5/16"
CONNECTION TYPE Barbed|Female JIC Swivel
CONNECTION TYPE 1 Push-On Hose Barbed
CONNECTION TYPE 2
 Female 45 deg SAE/37 deg JIC Swivel
DIMENSIONS 2.33" Length
FITTING TYPE Connector
HEX SIZE 1"
MAXIMUM OPERATING PRESSURE 150 psi
THREAD SIZE 7/8-14
BARB LENGTH 0.87"
APPLICATIONS Ideal for hydraulic, pneumatic, fuel systems, and industrial applications
BRAND Midland Industries


Midland Industries by Midland Industries

30427

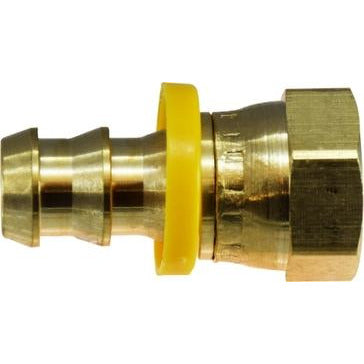

3/8 X 5/16 PUSH ON X DUAL SWIVEL

$16.68
$16.68
