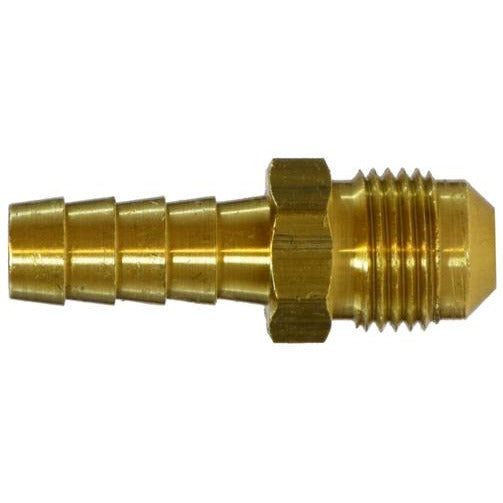

The 3/8 X 3/8 Hose Barb X Male BSPT 45 deg Flared Adapter is a fitting designed to connect hoses and pipes at a 45-degree angle, with a hose barb on one side and a male British Standard Pipe Tapered thread on the other. The hose barb side is designed to help ensure a tight, leak-free fit. The male BSPT side has tapered threads that create a leak-proof seal when connected to a compatible female BSPT fitting. Brass offers durability and excellent resistance to corrosion, ensuring the adapter performs well in a range of environments.
| Specification | Value |
|---|---|
| TYPE | Hose Barb X Male Flare |
| DESIGN | 45 deg flared design for a tight, secure seal |
| ADDITIONAL INFORMATION | 1.82" length |
| MATERIAL | Brass for durability and corrosion-resistance |
| WEIGHT (lbs) | 0.080 |
| CONNECTION SIZE 1 | 3/8" |
| CONNECTION SIZE 2 | 3/8" |
| CONNECTION TYPE | Barbed | Male BSP |
| CONNECTION TYPE 1 | Hose Barbed |
| CONNECTION TYPE 2 | Male BSPT 45 deg Flared |
| FITTING TYPE | Adapter |
| HEX SIZE | 0.62" |
| MAXIMUM OPERATING PRESSURE | 150 psi |
| OPERATING TEMPERATURE | -40 to 160 deg F |
| THREAD SIZE | 5/8-18 |
| FOR USE WITH | Hose Clamp, Similar Type Clamp or A Crimped Ferrules |
| BARBED LENGTH | 0.97" |
| APPLICATIONS |
Ideal for Automotive and Marine, Hydraulic, Pneumatic, Plumbing, Fluid Handling, and Fire Protection Systems. |
| BRAND | Midland Industries |
The 3/8 X 3/8 Hose Barb X Male BSPT 45 deg Flared Adapter is a fitting designed to connect hoses and pipes at a 45-degree angle, with a hose barb on one side and a male British Standard Pipe Tapered thread on the other. The hose barb side is designed to help ensure a tight, leak-free fit. The male BSPT side has tapered threads that create a leak-proof seal when connected to a compatible female BSPT fitting. Brass offers durability and excellent resistance to corrosion, ensuring the adapter performs well in a range of environments.
| Specification | Value |
|---|---|
| TYPE | Hose Barb X Male Flare |
| DESIGN | 45 deg flared design for a tight, secure seal |
| ADDITIONAL INFORMATION | 1.82" length |
| MATERIAL | Brass for durability and corrosion-resistance |
| WEIGHT (lbs) | 0.080 |
| CONNECTION SIZE 1 | 3/8" |
| CONNECTION SIZE 2 | 3/8" |
| CONNECTION TYPE | Barbed | Male BSP |
| CONNECTION TYPE 1 | Hose Barbed |
| CONNECTION TYPE 2 | Male BSPT 45 deg Flared |
| FITTING TYPE | Adapter |
| HEX SIZE | 0.62" |
| MAXIMUM OPERATING PRESSURE | 150 psi |
| OPERATING TEMPERATURE | -40 to 160 deg F |
| THREAD SIZE | 5/8-18 |
| FOR USE WITH | Hose Clamp, Similar Type Clamp or A Crimped Ferrules |
| BARBED LENGTH | 0.97" |
| APPLICATIONS |
Ideal for Automotive and Marine, Hydraulic, Pneumatic, Plumbing, Fluid Handling, and Fire Protection Systems. |
| BRAND | Midland Industries |
SKU:32084
3/8 X 3/8 Hose Barb X Male Flare
- Regular price
- $8.00
- Sale price
- $8.00
