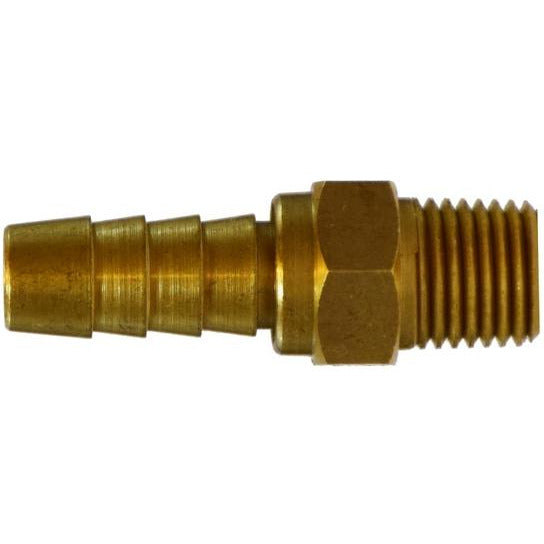

The 3/8 x 1/4 Hose Barb x Male Iron Pipe Swivel High Volume Adapter with Nitrile Buna O-Ring is engineered for efficient fluid transfer with increased flow capacity. The hose barb end provides a secure connection for flexible tubing, while the MIP end ensures a tight, leak-resistant threaded connection. Built from high-quality brass for excellent durability, corrosion and chemical resistance.
| Specification | Details |
|---|---|
| TYPE | Hose Barb x Male Iron Pipe Swivel High Volume |
| DESIGN | Swivel design (reduces hose kinking and simplifies installation) |
| MATERIAL | Brass (for durability, corrosion and chemical resistance ) |
| MATERIAL CONSTRUCTION | Brass |
|
WEIGHT (LBS) |
0.070 |
| CONNECTION SIZE 1 | 3/8" |
| CONNECTION SIZE 2 | 1/4" |
| CONNECTION TYPE | Barbed|MIP |
| CONNECTION TYPE 1 | Hose Barbed |
| CONNECTION TYPE 2 | MIP |
| DIMENSIONS | 1.83" L |
| FITTING TYPE | Adapter |
| HEX SIZE | 0.62" |
| FOR USE WITH | Hose Clamp, Similar Type Clamp or a Crimped Ferrule |
| OPERATING TEMPERATURE | -40 to 160 deg F |
| MAXIMUM OPERATING PRESSURE | 300 psi |
| THREAD SIZE | 1/4-18 |
| NOTE | • Nitrile Buna (NBR) O-Ring |
| BARB LENGTH | 0.87" |
| SHAPE | Coupling |
| APPLICATIONS |
Ideal for Pneumatic and Hydraulic, Air Fluid Transfer Systems, Fuel Oil Handling, HVAC Refrigeration, and Automotive. |
| BRAND | Midland Industries |
The 3/8 x 1/4 Hose Barb x Male Iron Pipe Swivel High Volume Adapter with Nitrile Buna O-Ring is engineered for efficient fluid transfer with increased flow capacity. The hose barb end provides a secure connection for flexible tubing, while the MIP end ensures a tight, leak-resistant threaded connection. Built from high-quality brass for excellent durability, corrosion and chemical resistance.
| Specification | Details |
|---|---|
| TYPE | Hose Barb x Male Iron Pipe Swivel High Volume |
| DESIGN | Swivel design (reduces hose kinking and simplifies installation) |
| MATERIAL | Brass (for durability, corrosion and chemical resistance ) |
| MATERIAL CONSTRUCTION | Brass |
|
WEIGHT (LBS) |
0.070 |
| CONNECTION SIZE 1 | 3/8" |
| CONNECTION SIZE 2 | 1/4" |
| CONNECTION TYPE | Barbed|MIP |
| CONNECTION TYPE 1 | Hose Barbed |
| CONNECTION TYPE 2 | MIP |
| DIMENSIONS | 1.83" L |
| FITTING TYPE | Adapter |
| HEX SIZE | 0.62" |
| FOR USE WITH | Hose Clamp, Similar Type Clamp or a Crimped Ferrule |
| OPERATING TEMPERATURE | -40 to 160 deg F |
| MAXIMUM OPERATING PRESSURE | 300 psi |
| THREAD SIZE | 1/4-18 |
| NOTE | • Nitrile Buna (NBR) O-Ring |
| BARB LENGTH | 0.87" |
| SHAPE | Coupling |
| APPLICATIONS |
Ideal for Pneumatic and Hydraulic, Air Fluid Transfer Systems, Fuel Oil Handling, HVAC Refrigeration, and Automotive. |
| BRAND | Midland Industries |
SKU:32781
3/8 x 1/4 Hose Barb x Male Iron Pipe Swivel High Volume
- Regular price
- $28.90
- Sale price
- $28.90
