The 3/8 X 1/2 Push On Hose Barb X Female Gasket Swivel is a reliable fitting designed for fluid and hydraulic systems. It features a push-on hose barb for easy, clamp-free connection to 3/8" hoses, while the female gasket ensures a leak-proof seal. The swivel design allows rotation, preventing hose strain and providing flexibility in dynamic systems. Ideal for high-pressure applications, it is widely used in automotive, industrial, and fluid transfer systems.
| Specification | Details |
|---|---|
| TYPE | Push On Hose Barb X Female Gasket Swivel |
| DESIGN |
Rotating Design allows the fitting to rotate smoothly |
| MATERIAL |
Brass offers excellent corrosion resistance, durability, and ease of fabrication. |
| MATERIAL CONSTRUCTION | Brass |
|
WEIGHT (LBS) |
0.090 |
| CONNECTION SIZE 1 | 3/8" |
| CONNECTION SIZE 2 | 1/2" |
| CONNECTION TYPE | Barbed|Female Swivel |
| CONNECTION TYPE 1 | Push-On Hose Barbed |
| CONNECTION TYPE 2 | Female Swivel |
| DIMENSIONS | 1.8" L |
| FITTING TYPE | Adapter |
| HEX SIZE | 0.93" |
| THREAD SIZE | 1/4-18 |
| MAXIMUM OPERATING PRESSURE | 150 psig |
| APPLICATIONS | Ideal for Pneumatic, Hydraulic, Automotive, Fluid Handling and Industrial Equipment |
| NOTES | Not recommend for water due to fiber gasket - for air service only.Dimension data can change without notice. Please see our website when dimensions are critical. |
| BRAND | Midland Industries |
The 3/8 X 1/2 Push On Hose Barb X Female Gasket Swivel is a reliable fitting designed for fluid and hydraulic systems. It features a push-on hose barb for easy, clamp-free connection to 3/8" hoses, while the female gasket ensures a leak-proof seal. The swivel design allows rotation, preventing hose strain and providing flexibility in dynamic systems. Ideal for high-pressure applications, it is widely used in automotive, industrial, and fluid transfer systems.
| Specification | Details |
|---|---|
| TYPE | Push On Hose Barb X Female Gasket Swivel |
| DESIGN |
Rotating Design allows the fitting to rotate smoothly |
| MATERIAL |
Brass offers excellent corrosion resistance, durability, and ease of fabrication. |
| MATERIAL CONSTRUCTION | Brass |
|
WEIGHT (LBS) |
0.090 |
| CONNECTION SIZE 1 | 3/8" |
| CONNECTION SIZE 2 | 1/2" |
| CONNECTION TYPE | Barbed|Female Swivel |
| CONNECTION TYPE 1 | Push-On Hose Barbed |
| CONNECTION TYPE 2 | Female Swivel |
| DIMENSIONS | 1.8" L |
| FITTING TYPE | Adapter |
| HEX SIZE | 0.93" |
| THREAD SIZE | 1/4-18 |
| MAXIMUM OPERATING PRESSURE | 150 psig |
| APPLICATIONS | Ideal for Pneumatic, Hydraulic, Automotive, Fluid Handling and Industrial Equipment |
| NOTES | Not recommend for water due to fiber gasket - for air service only.Dimension data can change without notice. Please see our website when dimensions are critical. |
| BRAND | Midland Industries |
SKU:30362

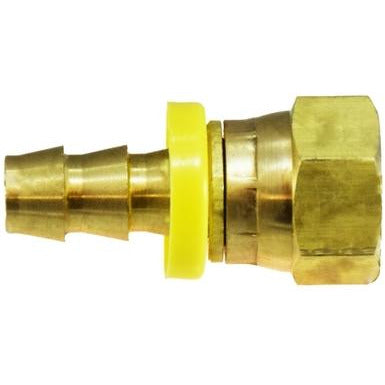

3/8 X 1/2 Push On Hose Barb X Female Gasket Swivel
- Regular price
- $28.30
- Sale price
- $28.30
