The 3/8 Nut & Plastic Sleeve Assembly is engineered for use in compression fittings with outside diameter tubing. The assembly provides a leak-free and secure connection by combining a brass nut with a plastic sleeve to ensure tight seals and optimal performance. This nut is constructed from brass that is excellent in durability and corrosion resistance.
| Specification | Details |
|---|---|
| TYPE | Nut & Plastic Sleeve Assembly |
| DESIGN | Leak-Proof Seal (to prevent leaks) Thread Design (compression thread compatible with OD tubing) |
| MATERIAL | Brass (for durability and corrosion resistance) |
| MATERIAL CONSTRUCTION | Brass |
|
WEIGHT (LBS) |
0.020 |
| ADDITIONAL INFORMATION | Plastic Sleeve, 0.049" Tube Wall |
| COLOR | White Sleeve |
| CONNECTION SIZE | 3/8" |
| CONNECTION TYPE | Flareless |
| FITTING TYPE | Nut |
| FOR USE WITH | Aluminum, Copper Tubing, Hard Plastic Tubing with Brass Sleeve |
| HEX SIZE | 0.56" |
| LENGTH | 0.38" |
| TEMPERATURE RATING | -40 to 150 deg F |
| PRESSURE RATING | 300 psi |
| THREAD SIZE | 1/2-24 |
| APPROX WT LBS | 0.04 |
| APPLICATIONS | Ideal for Pneumatic, Hydraulic, Fuel lines, Water distribution systems, Industrial equipment and machinery. |
| BRAND | Midland Industries |
The 3/8 Nut & Plastic Sleeve Assembly is engineered for use in compression fittings with outside diameter tubing. The assembly provides a leak-free and secure connection by combining a brass nut with a plastic sleeve to ensure tight seals and optimal performance. This nut is constructed from brass that is excellent in durability and corrosion resistance.
| Specification | Details |
|---|---|
| TYPE | Nut & Plastic Sleeve Assembly |
| DESIGN | Leak-Proof Seal (to prevent leaks) Thread Design (compression thread compatible with OD tubing) |
| MATERIAL | Brass (for durability and corrosion resistance) |
| MATERIAL CONSTRUCTION | Brass |
|
WEIGHT (LBS) |
0.020 |
| ADDITIONAL INFORMATION | Plastic Sleeve, 0.049" Tube Wall |
| COLOR | White Sleeve |
| CONNECTION SIZE | 3/8" |
| CONNECTION TYPE | Flareless |
| FITTING TYPE | Nut |
| FOR USE WITH | Aluminum, Copper Tubing, Hard Plastic Tubing with Brass Sleeve |
| HEX SIZE | 0.56" |
| LENGTH | 0.38" |
| TEMPERATURE RATING | -40 to 150 deg F |
| PRESSURE RATING | 300 psi |
| THREAD SIZE | 1/2-24 |
| APPROX WT LBS | 0.04 |
| APPLICATIONS | Ideal for Pneumatic, Hydraulic, Fuel lines, Water distribution systems, Industrial equipment and machinery. |
| BRAND | Midland Industries |
SKU:20213

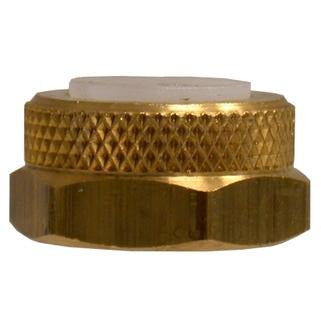

3/8 Nut & Plastic Sleeve Assembly
- Regular price
- $3.11
- Sale price
- $3.11
