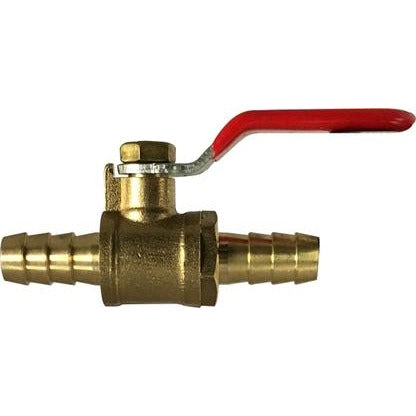

The 3/8 Hose Barb x Hose Barb Forged Mini Ball Valve is a compact, lightweight, and durable valve designed for quick shutoff and control of liquid or gas flow. It features hose barb connections on both ends, allowing for easy integration with flexible tubing. The forged body enhances strength and durability, making it ideal for high-pressure and demanding applications.
| Specification | Value |
|---|---|
| TYPE | Hose Barb x Hose Barb Forged Mini Ball Valve |
| DESIGN |
Hose barb ends allow for a secure fit with flexible tubing using hose clamps |
| BALL MATERIAL | Brass |
| BODY MATERIAL | Forged Brass provides increased strength and resistance to pressure |
| WEIGHT (LBS) | 0.150 |
|
CONNECTION TYPE |
Hose Barbed x Hose Barbed |
| DIMENSIONS | 3.18" OAL x 1.55" H |
| DISC MATERIAL | Brass |
| DOMESTIC/IMPORT | Import |
| HANDLE MATERIAL | Steel |
| INLET TO OUTLET LENGTH | 2.47" |
| NOMINAL SIZE | 3/8" |
| OPERATOR TYPE | 180 deg Operational Handle |
| PRESSURE RATING | 200 psi WOG |
| SEAT MATERIAL | PTFE |
| STEM MATERIAL | Brass |
| TEMPERATURE RATING | -20 to 250 deg F |
| TRIM MATERIAL | Steel Screw/NBR O-Ring/Steel Nut |
| ADDITIONAL INFORMATION | C 0.73 |
| APPLICATIONS |
Ideal for Water and Air Systems, Fuel and Oil Lines, Irrigation & Agricultural Systems, Hydraulic & Pneumatic Systems, Beverage & Food Processing, HVAC & Refrigeration. |
| BRAND | Midland Industries |
The 3/8 Hose Barb x Hose Barb Forged Mini Ball Valve is a compact, lightweight, and durable valve designed for quick shutoff and control of liquid or gas flow. It features hose barb connections on both ends, allowing for easy integration with flexible tubing. The forged body enhances strength and durability, making it ideal for high-pressure and demanding applications.
| Specification | Value |
|---|---|
| TYPE | Hose Barb x Hose Barb Forged Mini Ball Valve |
| DESIGN |
Hose barb ends allow for a secure fit with flexible tubing using hose clamps |
| BALL MATERIAL | Brass |
| BODY MATERIAL | Forged Brass provides increased strength and resistance to pressure |
| WEIGHT (LBS) | 0.150 |
|
CONNECTION TYPE |
Hose Barbed x Hose Barbed |
| DIMENSIONS | 3.18" OAL x 1.55" H |
| DISC MATERIAL | Brass |
| DOMESTIC/IMPORT | Import |
| HANDLE MATERIAL | Steel |
| INLET TO OUTLET LENGTH | 2.47" |
| NOMINAL SIZE | 3/8" |
| OPERATOR TYPE | 180 deg Operational Handle |
| PRESSURE RATING | 200 psi WOG |
| SEAT MATERIAL | PTFE |
| STEM MATERIAL | Brass |
| TEMPERATURE RATING | -20 to 250 deg F |
| TRIM MATERIAL | Steel Screw/NBR O-Ring/Steel Nut |
| ADDITIONAL INFORMATION | C 0.73 |
| APPLICATIONS |
Ideal for Water and Air Systems, Fuel and Oil Lines, Irrigation & Agricultural Systems, Hydraulic & Pneumatic Systems, Beverage & Food Processing, HVAC & Refrigeration. |
| BRAND | Midland Industries |
SKU:944134
3/8 Hose Barb x Hose Barb Forged Mini Ball Valve
- Regular price
- $25.68
- Sale price
- $25.68
