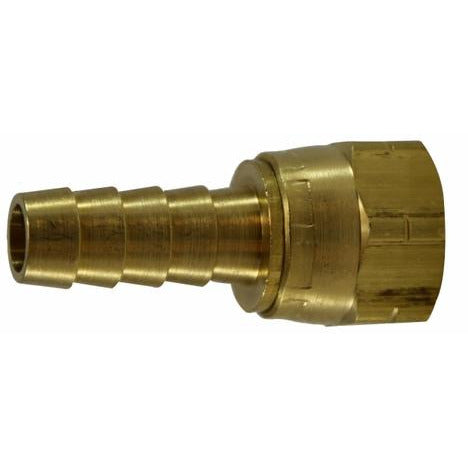

A brass barbed hose fitting with a 3/8 inch SAE crimp style connection. - 3/8 Barb X 3/8 SAE Crimp Style
    A brass barbed hose fitting with a 3/8 inch SAE crimp style connection. - 3/8 Barb X 3/8 SAE Crimp Style
A brass barbed hose fitting with a 3/8 inch SAE crimp style connection. - 3/8 Barb X 3/8 SAE Crimp Style
A brass barbed hose fitting with a 3/8 inch SAE crimp style connection. - 3/8 Barb X 3/8 SAE Crimp Style
    A brass barbed hose fitting with a 3/8 inch SAE crimp style connection. - 3/8 Barb X 3/8 SAE Crimp Style
A brass barbed hose fitting with a 3/8 inch SAE crimp style connection. - 3/8 Barb X 3/8 SAE Crimp Style
Description

The 3/8 Barb X 3/8 SAE Crimp Style Flare Swivel is designed for secure, high-pressure fluid transfer in automotive, hydraulic, and industrial applications. The barbed end ensures a tight grip on flexible hoses, preventing leaks, while the SAE crimp connection provides a durable, factory-quality seal.

Specification Details
TYPE Barb X SAE Crimp Style
DESIGN Secure & Leak-Proof Connection the barbed end ensures a strong grip on hoses, preventing leaks and disconnections under pressure.
MATERIAL Brass combines lightweight durability and corrosion resistance
MATERIAL CONSTRUCTION Brass
WEIGHT (lbs)
 0.065
CONNECTION SIZE 1  3/8"
CONNECTION SIZE 2 3/8"
CONNECTION TYPE Barbed|SAE
CONNECTION TYPE 1 Barbed
CONNECTION TYPE 2 SAE
DIMENSIONS 1.71" L
FOR USE WITH Hose Clamp, Similar Type Clamp or A Crimped Ferrule
FITTING TYPE Swivel
HEX SIZE 3/4"
MAXIMUM OPERATING PRESSURE 150 psi
OPERATING TEMPERATURE -40 to 160 deg F
THREAD SIZE 5/8-18
BARB LENGTH 0.97"
APPLICATIONS Ideal for

Automotive Systems, Hydraulic, Industrial, HVAC, Pneumatic & Air Systems
BRAND Midland Industries



Link to Midland Industries Catalog

Description

The 3/8 Barb X 3/8 SAE Crimp Style Flare Swivel is designed for secure, high-pressure fluid transfer in automotive, hydraulic, and industrial applications. The barbed end ensures a tight grip on flexible hoses, preventing leaks, while the SAE crimp connection provides a durable, factory-quality seal.

Specification Details
TYPE Barb X SAE Crimp Style
DESIGN Secure & Leak-Proof Connection the barbed end ensures a strong grip on hoses, preventing leaks and disconnections under pressure.
MATERIAL Brass combines lightweight durability and corrosion resistance
MATERIAL CONSTRUCTION Brass
WEIGHT (lbs)
 0.065
CONNECTION SIZE 1  3/8"
CONNECTION SIZE 2 3/8"
CONNECTION TYPE Barbed|SAE
CONNECTION TYPE 1 Barbed
CONNECTION TYPE 2 SAE
DIMENSIONS 1.71" L
FOR USE WITH Hose Clamp, Similar Type Clamp or A Crimped Ferrule
FITTING TYPE Swivel
HEX SIZE 3/4"
MAXIMUM OPERATING PRESSURE 150 psi
OPERATING TEMPERATURE -40 to 160 deg F
THREAD SIZE 5/8-18
BARB LENGTH 0.97"
APPLICATIONS Ideal for

Automotive Systems, Hydraulic, Industrial, HVAC, Pneumatic & Air Systems
BRAND Midland Industries



Link to Midland Industries Catalog

Midland Industries by Midland Industries

32105C

3/8 Barb X 3/8 SAE Crimp Style

$3.23
