The 3/4" x 1/2" Female Inverted Flare x Male Iron Pipe 90 deg Elbow is a versatile 90-degree fitting designed to connect pipes or hoses with different thread types. One end features a female inverted flare for a tight seal, while the other end has a male iron pipe thread for secure attachment. This elbow is ideal for hydraulic, fuel line, and pneumatic systems, offering a reliable solution where a compact, right-angle connection is needed.
|
Specification |
Details |
|
TYPE |
Female Inverted Flare x Male Iron Pipe Elbow |
|
DESIGN |
90-Degree Elbow to connect a tube with an inverted flare fitting to a threaded pipe fitting at a right angle. |
|
MATERIAL |
Brass for durability, corrosion resistance, and compatibility |
|
MATERIAL CONSTRUCTION |
Brass |
| ADDITIONAL INFORMATION |
0.8 x 1.39" Center to End |
| TUBE WALL |
0.035" |
|
WEIGHT (LBS) |
0.420 |
|
CONNECTION SIZE 1 |
3/4" |
|
CONNECTION SIZE 2 |
1/2" |
|
CONNECTION TYPE |
Female Inverted Flared|MNPT |
|
CONNECTION TYPE 1 |
Female Inverted Flared |
|
CONNECTION TYPE 2 |
MNPTF |
|
FOR USE WITH |
Aluminum, Brass, Copper, and Steel Hydraulic Tubing |
|
FITTING TYPE |
90 deg Elbow |
|
MAXIMUM OPERATING PRESSURE |
550 psi |
|
OPERATING TEMPERATURE |
-65 to 250 deg F |
|
OPERATING TEMPERATURE |
-65 to 250 deg F |
|
THREAD SIZE |
1-1/16-16 x 1/2-14 |
|
SAE # |
040202 |
|
APPLICATIONS |
Ideal for hydraulic systems, fuel lines, pneumatic systems. |
Link to Midland Industries Catalog
The 3/4" x 1/2" Female Inverted Flare x Male Iron Pipe 90 deg Elbow is a versatile 90-degree fitting designed to connect pipes or hoses with different thread types. One end features a female inverted flare for a tight seal, while the other end has a male iron pipe thread for secure attachment. This elbow is ideal for hydraulic, fuel line, and pneumatic systems, offering a reliable solution where a compact, right-angle connection is needed.
|
Specification |
Details |
|
TYPE |
Female Inverted Flare x Male Iron Pipe Elbow |
|
DESIGN |
90-Degree Elbow to connect a tube with an inverted flare fitting to a threaded pipe fitting at a right angle. |
|
MATERIAL |
Brass for durability, corrosion resistance, and compatibility |
|
MATERIAL CONSTRUCTION |
Brass |
| ADDITIONAL INFORMATION |
0.8 x 1.39" Center to End |
| TUBE WALL |
0.035" |
|
WEIGHT (LBS) |
0.420 |
|
CONNECTION SIZE 1 |
3/4" |
|
CONNECTION SIZE 2 |
1/2" |
|
CONNECTION TYPE |
Female Inverted Flared|MNPT |
|
CONNECTION TYPE 1 |
Female Inverted Flared |
|
CONNECTION TYPE 2 |
MNPTF |
|
FOR USE WITH |
Aluminum, Brass, Copper, and Steel Hydraulic Tubing |
|
FITTING TYPE |
90 deg Elbow |
|
MAXIMUM OPERATING PRESSURE |
550 psi |
|
OPERATING TEMPERATURE |
-65 to 250 deg F |
|
OPERATING TEMPERATURE |
-65 to 250 deg F |
|
THREAD SIZE |
1-1/16-16 x 1/2-14 |
|
SAE # |
040202 |
|
APPLICATIONS |
Ideal for hydraulic systems, fuel lines, pneumatic systems. |
Link to Midland Industries Catalog
SKU:12069

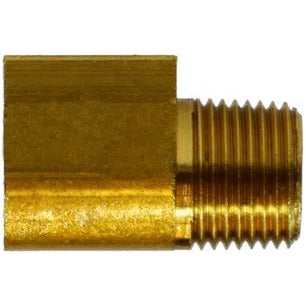

3/4" x 1/2" Female Inverted Flare x Male Iron Pipe Elbow
- Regular price
- $89.27
- Sale price
- $89.27
- Regular price
-
