The 3/4" Lead-Free Press Ball Valve ensures safe, reliable flow control for potable water and heating systems. Its press connection allows for quick, solder-free installation, while the full-port design provides max flow with minimal pressure loss. Ideal for residential, commercial, and industrial use.
| Specification | Details |
|---|---|
| TYPE | Lead-Free Press Ball Valve |
| DESIGN |
Full-Port Design ensures maximum flow with minimal pressure drop. |
| MATERIAL | Brass for durability and long-lasting |
| WEIGHT | 0.8 |
| BALL MATERIAL | Stainless Steel |
| BODY MATERIAL | Lead-Free Brass |
| CONNECTION TYPE | Press x Press |
| DIMENSIONS | 3.6" L |
| DOMESTIC/IMPORT | Import |
| FLOW COEFFICIENT (CV) | 29.76 Cv |
| HANDLE MATERIAL | Chrome-plated ferrum |
| INLET TO OUTLET LENGTH | 3.6" |
| LEAD-FREE/CONTAINS LEAD | Lead-free |
| NOMINAL SIZE | 3/4" |
| OPERATOR SIZE | Handle |
| PACKAGING MATERIAL | PTFE |
| PORT TYPE | Full |
| PRESSURE RATING | 250 psi WOG |
| SEAL MATERIAL | PTFE |
| SEAT MATERIAL | PTFE |
| SERIES | 940 LF series |
| STEM MATERIAL | Brass |
| TOP TO INLET CENTER | 2.09" |
| TRIM MATERIAL | NBR Stem O-Ring and Body O-Ring/EPDM Press O-Ring/Ferrum/Zinc-Plated Locknut and Lock Washer |
| APPLICATIONS | Ideal for HVAC System, Irrigation Systems, Industrial & Commercial Plumbing, Heating & Hydronic Systems |
| BRAND | Midland Industries |
The 3/4" Lead-Free Press Ball Valve ensures safe, reliable flow control for potable water and heating systems. Its press connection allows for quick, solder-free installation, while the full-port design provides max flow with minimal pressure loss. Ideal for residential, commercial, and industrial use.
| Specification | Details |
|---|---|
| TYPE | Lead-Free Press Ball Valve |
| DESIGN |
Full-Port Design ensures maximum flow with minimal pressure drop. |
| MATERIAL | Brass for durability and long-lasting |
| WEIGHT | 0.8 |
| BALL MATERIAL | Stainless Steel |
| BODY MATERIAL | Lead-Free Brass |
| CONNECTION TYPE | Press x Press |
| DIMENSIONS | 3.6" L |
| DOMESTIC/IMPORT | Import |
| FLOW COEFFICIENT (CV) | 29.76 Cv |
| HANDLE MATERIAL | Chrome-plated ferrum |
| INLET TO OUTLET LENGTH | 3.6" |
| LEAD-FREE/CONTAINS LEAD | Lead-free |
| NOMINAL SIZE | 3/4" |
| OPERATOR SIZE | Handle |
| PACKAGING MATERIAL | PTFE |
| PORT TYPE | Full |
| PRESSURE RATING | 250 psi WOG |
| SEAL MATERIAL | PTFE |
| SEAT MATERIAL | PTFE |
| SERIES | 940 LF series |
| STEM MATERIAL | Brass |
| TOP TO INLET CENTER | 2.09" |
| TRIM MATERIAL | NBR Stem O-Ring and Body O-Ring/EPDM Press O-Ring/Ferrum/Zinc-Plated Locknut and Lock Washer |
| APPLICATIONS | Ideal for HVAC System, Irrigation Systems, Industrial & Commercial Plumbing, Heating & Hydronic Systems |
| BRAND | Midland Industries |
SKU:940404LF

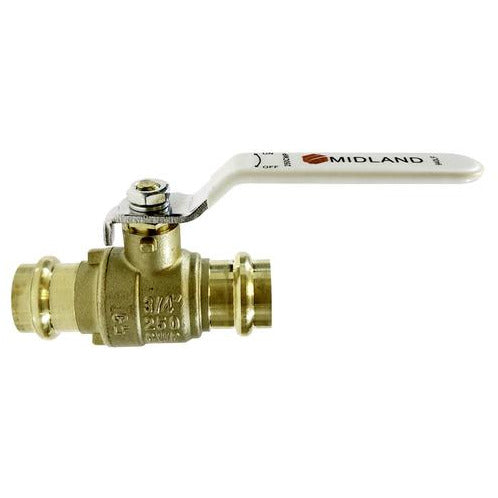

3/4 Lead-Free Press Ball Valve
- Regular price
- $29.82
- Sale price
- $29.82
