| Specification | Value |
|---|---|
| TYPE | Female x Female Lead Free Canadian Standards Association Full Port Ball Valve |
| DESIGN |
Full port design provides maximum flow capacity with minimal pressure drop |
| STEM MATERIAL | Brass for durability and corrosion resistance. |
| SEAT MATERIAL | PTFE |
| WEIGHT (lbs) | 0.570 |
| ADDITIONAL INFORMATION | 150 psi WSP Service Pressure, 29.92" Hg Vacuum Services |
| THREAD SIZE | 3/4-14 |
| BALL MATERIAL | Stainless Steel |
| BODY MATERIAL | Lead-Free Forged Brass |
| CONNECTION TYPE | FIP x FIP |
| DIMENSIONS | 4.488" OAL x 2.579" H |
| DOMESTIC/IMPORT | Import |
| HANDLE MATERIAL | Plated Steel |
| INLET TO OUTLET LENGTH | 2.28" |
| LEAD-FREE/CONTAINS LEAD | Lead-Free |
| NOMINAL SIZE | 3/4" |
| OPERATOR TYPE | Handle |
| PACKING MATERIAL | PTFE |
| PORT TYPE | Full |
| PRESSURE RATING | 600 psi WOG |
| TEMPERATURE RATING | -40 to 365 deg F |
| TOP TO INLET CENTER | 1.89" |
| TRIM MATERIAL | Plated Steel Handle Nut and Lock Washer |
| ITEM INFO | NSF Listed-Threaded and Sweat |
| SHAPE | Ball Valve |
| BOXCASE | 10/80 |
| APPLICATIONS | Ideal for Potable Water Systems, Plumbing Systems, HVAC Systems, Irrigation Systems, Industrial Applications, Pneumatic and Hydraulic Systems. |
| BRAND | Midland Industries |
| Specification | Value |
|---|---|
| TYPE | Female x Female Lead Free Canadian Standards Association Full Port Ball Valve |
| DESIGN |
Full port design provides maximum flow capacity with minimal pressure drop |
| STEM MATERIAL | Brass for durability and corrosion resistance. |
| SEAT MATERIAL | PTFE |
| WEIGHT (lbs) | 0.570 |
| ADDITIONAL INFORMATION | 150 psi WSP Service Pressure, 29.92" Hg Vacuum Services |
| THREAD SIZE | 3/4-14 |
| BALL MATERIAL | Stainless Steel |
| BODY MATERIAL | Lead-Free Forged Brass |
| CONNECTION TYPE | FIP x FIP |
| DIMENSIONS | 4.488" OAL x 2.579" H |
| DOMESTIC/IMPORT | Import |
| HANDLE MATERIAL | Plated Steel |
| INLET TO OUTLET LENGTH | 2.28" |
| LEAD-FREE/CONTAINS LEAD | Lead-Free |
| NOMINAL SIZE | 3/4" |
| OPERATOR TYPE | Handle |
| PACKING MATERIAL | PTFE |
| PORT TYPE | Full |
| PRESSURE RATING | 600 psi WOG |
| TEMPERATURE RATING | -40 to 365 deg F |
| TOP TO INLET CENTER | 1.89" |
| TRIM MATERIAL | Plated Steel Handle Nut and Lock Washer |
| ITEM INFO | NSF Listed-Threaded and Sweat |
| SHAPE | Ball Valve |
| BOXCASE | 10/80 |
| APPLICATIONS | Ideal for Potable Water Systems, Plumbing Systems, HVAC Systems, Irrigation Systems, Industrial Applications, Pneumatic and Hydraulic Systems. |
| BRAND | Midland Industries |
SKU:941154LF

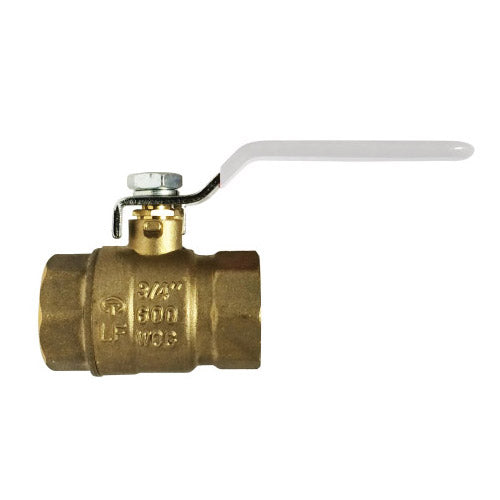

3/4 Female x Female Lead Free Canadian Standards Association Full Port Ball Valve
- Regular price
- $33.11
- Sale price
- $33.11
- Regular price
-
