Description

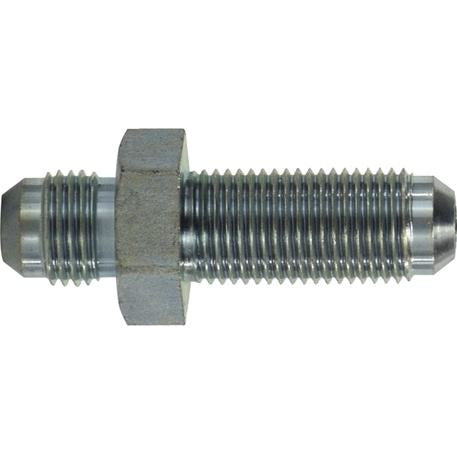

The 3/4-16 x 3/4-16 Male Joint Industry Council Bulkhead Union is a high-pressure hydraulic fitting designed to provide a secure and leak-proof connection through bulkheads or panels. With 2 UNF threaded connections, this fitting allows for seamless inline fluid transfer while ensuring stability and reliability in demanding applications. This bulkhead union is built from high-grade steel for durability and corrosion resistance.

Specification Value
TYPE Male Joint Industry Council Bulkhead Union
DESIGN Bulkhead Design, allows secure mounting through panels for additional stability.
MATERIAL Steel for long-lasting durability and corrosion resistance.
MATERIAL CONSTRUCTION Steel
WEIGHT (lbs) 0.260
CONNECTION SIZE 1
 1/2"
CONNECTION SIZE 2 1/2"
CONNECTION TYPE JIC|JIC
CONNECTION TYPE 1 Male 37 deg JIC Flared
CONNECTION TYPE 2 Male 37 deg JIC Flared
FITTING TYPE Union
MAXIMUM OPERATING PRESSURE 4500 psi
OPERATING TEMPERATURE 375 deg F
THREAD SIZE 3/4-16
APPLICATIONS  Ideal for Industrial Equipment & Machinery, Automotive & Heavy Equipment, Agricultural & Construction Equipment, Hydraulic & Pneumatic Systems.
BRAND Midland Industries

Link to Midland Industries Catalog
Description
The 3/4-16 x 3/4-16 Male Joint Industry Council Bulkhead Union is a high-pressure hydraulic fitting designed to provide a secure and leak-proof connection through bulkheads or panels. With 2 UNF threaded connections, this fitting allows for seamless inline fluid transfer while ensuring stability and reliability in demanding applications. This bulkhead union is built from high-grade steel for durability and corrosion resistance.

Specification Value
TYPE Male Joint Industry Council Bulkhead Union
DESIGN Bulkhead Design, allows secure mounting through panels for additional stability.
MATERIAL Steel for long-lasting durability and corrosion resistance.
MATERIAL CONSTRUCTION Steel
WEIGHT (lbs) 0.260
CONNECTION SIZE 1
 1/2"
CONNECTION SIZE 2 1/2"
CONNECTION TYPE JIC|JIC
CONNECTION TYPE 1 Male 37 deg JIC Flared
CONNECTION TYPE 2 Male 37 deg JIC Flared
FITTING TYPE Union
MAXIMUM OPERATING PRESSURE 4500 psi
OPERATING TEMPERATURE 375 deg F
THREAD SIZE 3/4-16
APPLICATIONS  Ideal for Industrial Equipment & Machinery, Automotive & Heavy Equipment, Agricultural & Construction Equipment, Hydraulic & Pneumatic Systems.
BRAND Midland Industries

Link to Midland Industries Catalog
Midland Industries by Midland Industries

27008

3/4-16 x 3/4-16 Male Joint Industry Council Bulkhead Union

$8.29
$8.29
