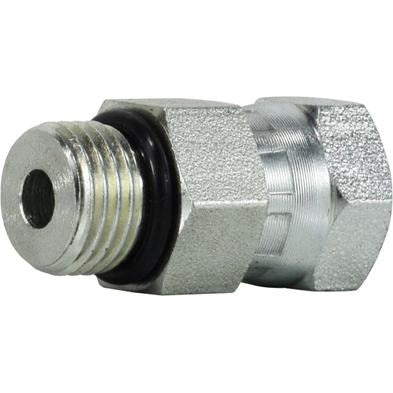

The 3/4-16 x 1/2 Male O-Ring Boss x Female National Pipe Straight Mechanical Swivel Adapter features a Male O-Ring Boss (MORB) thread on one side, ensuring a leak-proof seal using an O-ring. The Female NPSM Swivel side allows for easy connection to straight mechanical pipe threads without causing twisting or stress on the hose or tubing. The swivel function enhances usability by enabling rotation during installation, making it an ideal choice for high-pressure and high-performance applications.
| Specification | Details |
|---|---|
| TYPE | Male O-Ring Boss to Female NPSM Swivel Straight Adapter |
| DESIGN | Leak-Free Performance O-Ring Boss (MORB) connection ensures a reliable seal |
| MATERIAL | Steel high resistance to corrosion, chemicals, and extreme environments, suitable for marine and chemical applications. |
| MATERIAL CONSTRUCTION | Steel |
| WEIGHT (LBS) | 0.18 |
| CONNECTION SIZE 1 | 1/2" |
| CONNECTION SIZE 2 | 1/2" |
| CONNECTION TYPE | MORB|FNPSM Swivel |
| CONNECTION TYPE 1 | Male O-Ring Boss |
| CONNECTION TYPE 2 | Female NPSM Swivel |
| FITTING TYPE | Adapter |
| MAXIMUM OPERATING PRESSURE | 3600 psi |
| OPERATING TEMPERATURE | 375 deg F |
| SERIES | 6900 |
| THREAD SIZE 1 | 3/4 - 16 |
| THREAD SIZE 2 | 1/2 - 14 |
| APPLICATIONS | Ideal for Hydraulic Systems, Pneumatic Systems, Fuel and Oil Transfer, Industrial Machinery, Marine Applications, HVAC and Refrigeration |
| BRAND | Midland Industries |
The 3/4-16 x 1/2 Male O-Ring Boss x Female National Pipe Straight Mechanical Swivel Adapter features a Male O-Ring Boss (MORB) thread on one side, ensuring a leak-proof seal using an O-ring. The Female NPSM Swivel side allows for easy connection to straight mechanical pipe threads without causing twisting or stress on the hose or tubing. The swivel function enhances usability by enabling rotation during installation, making it an ideal choice for high-pressure and high-performance applications.
| Specification | Details |
|---|---|
| TYPE | Male O-Ring Boss to Female NPSM Swivel Straight Adapter |
| DESIGN | Leak-Free Performance O-Ring Boss (MORB) connection ensures a reliable seal |
| MATERIAL | Steel high resistance to corrosion, chemicals, and extreme environments, suitable for marine and chemical applications. |
| MATERIAL CONSTRUCTION | Steel |
| WEIGHT (LBS) | 0.18 |
| CONNECTION SIZE 1 | 1/2" |
| CONNECTION SIZE 2 | 1/2" |
| CONNECTION TYPE | MORB|FNPSM Swivel |
| CONNECTION TYPE 1 | Male O-Ring Boss |
| CONNECTION TYPE 2 | Female NPSM Swivel |
| FITTING TYPE | Adapter |
| MAXIMUM OPERATING PRESSURE | 3600 psi |
| OPERATING TEMPERATURE | 375 deg F |
| SERIES | 6900 |
| THREAD SIZE 1 | 3/4 - 16 |
| THREAD SIZE 2 | 1/2 - 14 |
| APPLICATIONS | Ideal for Hydraulic Systems, Pneumatic Systems, Fuel and Oil Transfer, Industrial Machinery, Marine Applications, HVAC and Refrigeration |
| BRAND | Midland Industries |
SKU:6900O88
3/4-16 x 1/2 Male O-Ring Boss x Female National Pipe Straight Mechanical Swivel Adapter
- Regular price
- $3.49
- Sale price
- $3.49
