The 3/16" Female Inverted Flared x 3/16" Adapter Standard to Metric Bubble is a versatile fitting designed to convert a standard 3/16" thread to a metric bubble flare connection. This adapter features a 3/16" standard male or female connection on both ends, allowing for easy integration between standard and metric-based systems. The metric bubble flare end provides a secure, leak-resistant seal commonly used in fluid or gas transfer applications. Ideal for use in automotive, hydraulic, and pneumatic systems, this adapter ensures compatibility between different thread types, offering flexibility and reliable performance in various high-pressure environments.
| Specification | Details |
|---|---|
| TYPE | Adapter Standard To Metric Bubble |
| DESIGN | Bubble Flare Design ensures a tight seal when connected to a female fitting, especially in fluid and gas systems where avoiding leaks is critical. |
| MATERIAL |
Brass for corrosion resistance, ease of machining, and affordability |
| MATERIAL CONSTRUCTION | Brass |
| WEIGHT (LBS) | 0.020 |
| CONNECTION SIZE 1 | 3/16" |
| CONNECTION SIZE 2 | 3/16" |
| CONNECTION TYPE | Female Inverted Flared|Inverted Flared |
| CONNECTION TYPE 1 | Female Inverted Flared |
| CONNECTION TYPE 2 | Male Inverted Flared |
| FITTING TYPE | Adapter |
| TEMPERATURE RATING |
-65 to 250 deg F |
| PRESSURE RATING |
1900 psi |
| THREAD SIZE |
3/8-24 x M10 x 1.25 |
| DIMENSIONS |
1" L |
| REF # |
7970 |
| HEX |
0.5" |
| SHAPE |
Straight/Connector |
| APPLICATIONS | Ideal for Hydraulic, Pneumatic and HVAC Systems |
| BRAND | Midland Industries |
The 3/16" Female Inverted Flared x 3/16" Adapter Standard to Metric Bubble is a versatile fitting designed to convert a standard 3/16" thread to a metric bubble flare connection. This adapter features a 3/16" standard male or female connection on both ends, allowing for easy integration between standard and metric-based systems. The metric bubble flare end provides a secure, leak-resistant seal commonly used in fluid or gas transfer applications. Ideal for use in automotive, hydraulic, and pneumatic systems, this adapter ensures compatibility between different thread types, offering flexibility and reliable performance in various high-pressure environments.
| Specification | Details |
|---|---|
| TYPE | Adapter Standard To Metric Bubble |
| DESIGN | Bubble Flare Design ensures a tight seal when connected to a female fitting, especially in fluid and gas systems where avoiding leaks is critical. |
| MATERIAL |
Brass for corrosion resistance, ease of machining, and affordability |
| MATERIAL CONSTRUCTION | Brass |
| WEIGHT (LBS) | 0.020 |
| CONNECTION SIZE 1 | 3/16" |
| CONNECTION SIZE 2 | 3/16" |
| CONNECTION TYPE | Female Inverted Flared|Inverted Flared |
| CONNECTION TYPE 1 | Female Inverted Flared |
| CONNECTION TYPE 2 | Male Inverted Flared |
| FITTING TYPE | Adapter |
| TEMPERATURE RATING |
-65 to 250 deg F |
| PRESSURE RATING |
1900 psi |
| THREAD SIZE |
3/8-24 x M10 x 1.25 |
| DIMENSIONS |
1" L |
| REF # |
7970 |
| HEX |
0.5" |
| SHAPE |
Straight/Connector |
| APPLICATIONS | Ideal for Hydraulic, Pneumatic and HVAC Systems |
| BRAND | Midland Industries |
SKU:12337

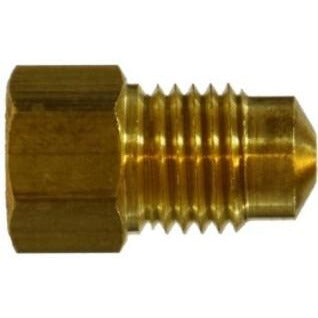

3/16 X 3/16 Adapter Standard To Metric Bubble
- Regular price
- $34.73
- Sale price
- $34.73
