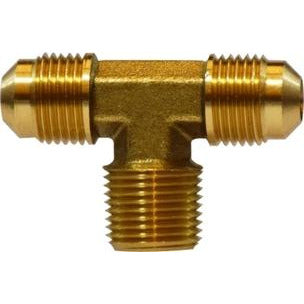

The 3/16 x 1/8 Male Flare x Male Iron Pipe Tee is a high-quality fitting used to create branch connections in piping systems. It features a male flare connection on the side and a male iron pipe connection on the side, making it ideal for transitioning between different thread types while splitting the flow in 2 directions. It is widely used in fluid, gas, and pneumatic systems for creating Y-style branch configurations. Made from brass for high durability, corrosion resistance, and long-lasting performance.
| Specification | Value |
|---|---|
| TYPE | Male Flare x Male Iron Pipe Tee |
| DESIGN |
T-shaped body with one main inlet and two outlets. |
| MATERIAL |
Brass for durability and corrosion resistance. |
| MATERIAL CONSTRUCTION | Forged Brass |
| WEIGHT (lbs) | 0.100 |
| ADDITIONAL INFORMATION | 0.36" Body Size, 3/4 x 3/4" Center to End, 0.03" Tube Wall, 0.75" x 0.75" Center to End |
| CONNECTION SIZE 1 | 3/16" |
| CONNECTION SIZE 2 | 3/16" |
| CONNECTION SIZE 3 | 1/8" |
| CONNECTION TYPE | Male Flared|Male Flared|MNPT |
| CONNECTION TYPE | Male Flared |
| CONNECTION TYPE | Male Flared |
| CONNECTION TYPE | Male NPTF |
| FITTING TYPE | Tee |
| FOR USE WITH | Copper, Brass, Aluminum, Steel Hydraulic Tubing |
| PRESSURE RATING | 1900 psi |
| TEMPERATURE RATING | -65 to 250 deg F |
| THREAD SIZE | 3/8-24 x 1/8-27 |
| NOTE | SAE# 010425 |
| APPLICATIONS |
Ideal for Pneumatic system, Hydraulic system, HVAC, Automotive & Fuel Systems |
| BRAND | Midland Industries |
The 3/16 x 1/8 Male Flare x Male Iron Pipe Tee is a high-quality fitting used to create branch connections in piping systems. It features a male flare connection on the side and a male iron pipe connection on the side, making it ideal for transitioning between different thread types while splitting the flow in 2 directions. It is widely used in fluid, gas, and pneumatic systems for creating Y-style branch configurations. Made from brass for high durability, corrosion resistance, and long-lasting performance.
| Specification | Value |
|---|---|
| TYPE | Male Flare x Male Iron Pipe Tee |
| DESIGN |
T-shaped body with one main inlet and two outlets. |
| MATERIAL |
Brass for durability and corrosion resistance. |
| MATERIAL CONSTRUCTION | Forged Brass |
| WEIGHT (lbs) | 0.100 |
| ADDITIONAL INFORMATION | 0.36" Body Size, 3/4 x 3/4" Center to End, 0.03" Tube Wall, 0.75" x 0.75" Center to End |
| CONNECTION SIZE 1 | 3/16" |
| CONNECTION SIZE 2 | 3/16" |
| CONNECTION SIZE 3 | 1/8" |
| CONNECTION TYPE | Male Flared|Male Flared|MNPT |
| CONNECTION TYPE | Male Flared |
| CONNECTION TYPE | Male Flared |
| CONNECTION TYPE | Male NPTF |
| FITTING TYPE | Tee |
| FOR USE WITH | Copper, Brass, Aluminum, Steel Hydraulic Tubing |
| PRESSURE RATING | 1900 psi |
| TEMPERATURE RATING | -65 to 250 deg F |
| THREAD SIZE | 3/8-24 x 1/8-27 |
| NOTE | SAE# 010425 |
| APPLICATIONS |
Ideal for Pneumatic system, Hydraulic system, HVAC, Automotive & Fuel Systems |
| BRAND | Midland Industries |
SKU:10203
3/16 x 1/8 Male Flare x Male Iron Pipe Tee
- Regular price
- $8.80
- Sale price
- $8.80
