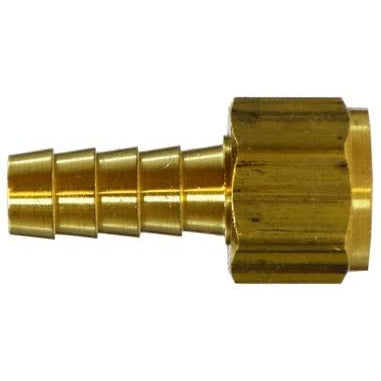

The 3/16" x 1/8" Hose Barb x Female Gasket Swivel with O-Ring Seal Gasket is a reliable and versatile fitting designed to securely connect hoses in various applications. With a hose barb on one end for a tight, leak-resistant attachment to hoses, and a female threaded connection on the other, this swivel fitting provides flexibility and ease of use. The integrated gasket ensures a secure seal, preventing leaks, while the swivel feature allows for smooth rotation, reducing hose strain and improving maneuverability. Ideal for use in automotive, industrial, and plumbing systems where durability and reliability are essential.
| Specification | Details |
|---|---|
| TYPE | Hose Barb X Female Gasket Swivel |
| DESIGN | Swivel Design allows easy, resistance-free movement during installation and smooth rotation |
| MATERIAL | Brass for durability and corrosion resistance |
|
MATERIAL CONSTRUCTION |
Brass |
| BARB LENGTH | 3/4" |
| WEIGHT (LBS) | 0.020 |
| CONNECTION SIZE 1 | 3/16" |
| CONNECTION SIZE 1 | 1/8" |
| CONNECTION TYPE | Hose|Male BSP |
| CONNECTION TYPE 1 | Hose |
| CONNECTION TYPE 2 | Male BSPT |
| DIMENSIONS | 1.19" L |
| FITTING TYPE | Adapter |
| FOR USE WITH | Hose Clamp, Similar Type Clamp or A Crimped Ferrules |
| HEX SIZE | 1/2" |
| THREAD SIZE | 1/8-27 |
| MAXIMUM OPERATING PRESSURE | 150 psi |
| OPERATING TEMPERATURE |
-40 to 160 deg F |
| SUBHEADING | • NPSM Thread National Pipe Straight Gasket Seal Swivel |
| NOTES |
• Not recommend for water due to fiber gasket - for air service only |
| SHAPE |
Straight/Connector |
| APPROX WT LBS |
0.03 |
| APPLICATIONS | Ideal for gas lines, hydraulic systems, automotive applications and pneumatic systems |
| BRAND | Midland Industries |
The 3/16" x 1/8" Hose Barb x Female Gasket Swivel with O-Ring Seal Gasket is a reliable and versatile fitting designed to securely connect hoses in various applications. With a hose barb on one end for a tight, leak-resistant attachment to hoses, and a female threaded connection on the other, this swivel fitting provides flexibility and ease of use. The integrated gasket ensures a secure seal, preventing leaks, while the swivel feature allows for smooth rotation, reducing hose strain and improving maneuverability. Ideal for use in automotive, industrial, and plumbing systems where durability and reliability are essential.
| Specification | Details |
|---|---|
| TYPE | Hose Barb X Female Gasket Swivel |
| DESIGN | Swivel Design allows easy, resistance-free movement during installation and smooth rotation |
| MATERIAL | Brass for durability and corrosion resistance |
|
MATERIAL CONSTRUCTION |
Brass |
| BARB LENGTH | 3/4" |
| WEIGHT (LBS) | 0.020 |
| CONNECTION SIZE 1 | 3/16" |
| CONNECTION SIZE 1 | 1/8" |
| CONNECTION TYPE | Hose|Male BSP |
| CONNECTION TYPE 1 | Hose |
| CONNECTION TYPE 2 | Male BSPT |
| DIMENSIONS | 1.19" L |
| FITTING TYPE | Adapter |
| FOR USE WITH | Hose Clamp, Similar Type Clamp or A Crimped Ferrules |
| HEX SIZE | 1/2" |
| THREAD SIZE | 1/8-27 |
| MAXIMUM OPERATING PRESSURE | 150 psi |
| OPERATING TEMPERATURE |
-40 to 160 deg F |
| SUBHEADING | • NPSM Thread National Pipe Straight Gasket Seal Swivel |
| NOTES |
• Not recommend for water due to fiber gasket - for air service only |
| SHAPE |
Straight/Connector |
| APPROX WT LBS |
0.03 |
| APPLICATIONS | Ideal for gas lines, hydraulic systems, automotive applications and pneumatic systems |
| BRAND | Midland Industries |
SKU:32132
3/16 X 1/8 Hose Barb X Female Gasket Swivel
- Regular price
- $14.56
- Sale price
- $14.56
