The 3/16" x 1/8" Female Inverted Flare x Female Iron Pipe Straight Adapter is a versatile and durable fitting designed to provide a secure connection between a 3/16" female inverted flare fitting and a 1/8" female iron pipe (FIP) connection. This adapter is ideal for applications that require a transition between different types of fittings, such as in hydraulic, pneumatic, fuel, and plumbing systems. With its high-quality construction, the adapter ensures a reliable, leak-tight seal, offering a dependable solution for various fluid and gas systems under medium-pressure conditions.
|
Specification |
Details |
|
TYPE |
Female Inverted Flare x Female Iron Pipe Adapter |
|
DESIGN |
Straight connector, allows direct, inline connection without changing direction |
|
MATERIAL |
Brass for durability, corrosion resistance, and compatibility |
|
MATERIAL CONSTRUCTION |
Brass |
|
TUBE WALL |
0.03" |
|
WEIGHT (LBS) |
0.060 |
|
CONNECTION SIZE 1 |
3/16" |
|
CONNECTION SIZE 2 |
1/8" |
|
CONNECTION TYPE |
Female Inverted Flared|FNPT |
|
CONNECTION TYPE 1 |
Female Inverted Flared |
|
CONNECTION TYPE 2 |
FNPTF |
|
FOR USE WITH |
Aluminum, Brass, Copper, Steel Hydraulic Tubing That Can Be Flared |
|
FITTING TYPE |
Adapter |
| PRESSURE RATING |
1900 psi |
| TEMPERATURE RATING |
-65 to 250 deg F |
|
DIMENSIONS |
3/4" L |
|
HEX SIZE |
1/2" |
|
THREAD SIZE |
3/8-24 x 1/8-27 |
|
SHAPE |
Straight/Connector |
|
SAE# |
040103 |
|
APPLICATIONS |
Ideal for hydraulic systems, fuel lines, pneumatic systems and air conditioning and refrigeration. |
|
BRAND |
Midland Industries |
Link to Midland Industries Catalog
The 3/16" x 1/8" Female Inverted Flare x Female Iron Pipe Straight Adapter is a versatile and durable fitting designed to provide a secure connection between a 3/16" female inverted flare fitting and a 1/8" female iron pipe (FIP) connection. This adapter is ideal for applications that require a transition between different types of fittings, such as in hydraulic, pneumatic, fuel, and plumbing systems. With its high-quality construction, the adapter ensures a reliable, leak-tight seal, offering a dependable solution for various fluid and gas systems under medium-pressure conditions.
|
Specification |
Details |
|
TYPE |
Female Inverted Flare x Female Iron Pipe Adapter |
|
DESIGN |
Straight connector, allows direct, inline connection without changing direction |
|
MATERIAL |
Brass for durability, corrosion resistance, and compatibility |
|
MATERIAL CONSTRUCTION |
Brass |
|
TUBE WALL |
0.03" |
|
WEIGHT (LBS) |
0.060 |
|
CONNECTION SIZE 1 |
3/16" |
|
CONNECTION SIZE 2 |
1/8" |
|
CONNECTION TYPE |
Female Inverted Flared|FNPT |
|
CONNECTION TYPE 1 |
Female Inverted Flared |
|
CONNECTION TYPE 2 |
FNPTF |
|
FOR USE WITH |
Aluminum, Brass, Copper, Steel Hydraulic Tubing That Can Be Flared |
|
FITTING TYPE |
Adapter |
| PRESSURE RATING |
1900 psi |
| TEMPERATURE RATING |
-65 to 250 deg F |
|
DIMENSIONS |
3/4" L |
|
HEX SIZE |
1/2" |
|
THREAD SIZE |
3/8-24 x 1/8-27 |
|
SHAPE |
Straight/Connector |
|
SAE# |
040103 |
|
APPLICATIONS |
Ideal for hydraulic systems, fuel lines, pneumatic systems and air conditioning and refrigeration. |
|
BRAND |
Midland Industries |
Link to Midland Industries Catalog
SKU:12032

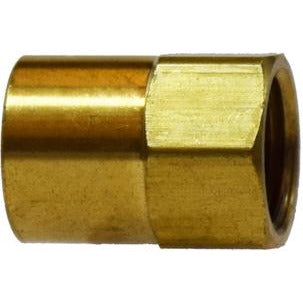

3/16" x 1/8" Female Inverted Flare x Female Iron Pipe Adapter
- Regular price
- $4.99
- Sale price
- $4.99
