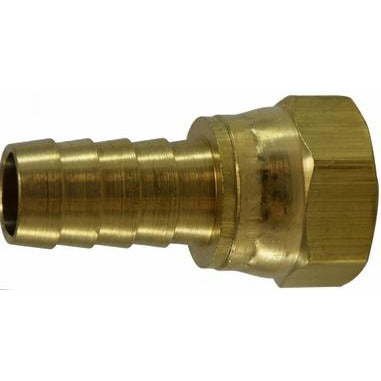

A gold-colored brass barb dual seat crimp fitting, with one barbed connection and one female JIC/SAE flared swivel connection. - 3/16 Barb X 1/4 Dual Seat Crimp
    A gold-colored brass barb dual seat crimp fitting, with one barbed connection and one female JIC/SAE flared swivel connection. - 3/16 Barb X 1/4 Dual Seat Crimp
A gold-colored brass barb dual seat crimp fitting, with one barbed connection and one female JIC/SAE flared swivel connection. - 3/16 Barb X 1/4 Dual Seat Crimp
A gold-colored brass barb dual seat crimp fitting, with one barbed connection and one female JIC/SAE flared swivel connection. - 3/16 Barb X 1/4 Dual Seat Crimp
    A gold-colored brass barb dual seat crimp fitting, with one barbed connection and one female JIC/SAE flared swivel connection. - 3/16 Barb X 1/4 Dual Seat Crimp
A gold-colored brass barb dual seat crimp fitting, with one barbed connection and one female JIC/SAE flared swivel connection. - 3/16 Barb X 1/4 Dual Seat Crimp
Description

The 3/16 Barb X 1/4 Dual Flare Swivel Seat Crimp is a high-performance fitting designed for secure, leak-proof connections in fluid and fuel transfer systems. Featuring a barbed end, it ensures a tight grip on hoses, preventing slippage and enhancing reliability.

Specification Details
TYPE Barb X Dual Seat Crimp
DESIGN Dual Seat Crimp Design the dual crimp seats offer additional sealing power, enhancing leak resistance and providing a more durable, long-lasting connection under high-pressure conditions.
MATERIAL Brass combines lightweight durability and corrosion resistance
MATERIAL CONSTRUCTION Brass
WEIGHT (lbs)
 0.035
CONNECTION SIZE 1  3/16"
CONNECTION SIZE 2 1/4"
CONNECTION TYPE Barbed|Female JIC/SAE Flared Swivel
CONNECTION TYPE 1 Hose Barbed
CONNECTION TYPE 2 Female 37 deg JIC Dual Seat/SAE 45 deg Flared Swivel
DIMENSIONS 1.42" L
FITTING TYPE Swivel
HEX SIZE 0.56"
MAXIMUM OPERATING PRESSURE 150 psi
OPERATING TEMPERATURE -40 to 160 deg F
THREAD SIZE 7/16-20
BARB LENGTH 0.78"
APPLICATIONS Ideal for Hydraulic Systems, Pneumatic Systems and HVAC Systems
BRAND Midland Industries



Link to Midland Industries Catalog

Description

The 3/16 Barb X 1/4 Dual Flare Swivel Seat Crimp is a high-performance fitting designed for secure, leak-proof connections in fluid and fuel transfer systems. Featuring a barbed end, it ensures a tight grip on hoses, preventing slippage and enhancing reliability.

Specification Details
TYPE Barb X Dual Seat Crimp
DESIGN Dual Seat Crimp Design the dual crimp seats offer additional sealing power, enhancing leak resistance and providing a more durable, long-lasting connection under high-pressure conditions.
MATERIAL Brass combines lightweight durability and corrosion resistance
MATERIAL CONSTRUCTION Brass
WEIGHT (lbs)
 0.035
CONNECTION SIZE 1  3/16"
CONNECTION SIZE 2 1/4"
CONNECTION TYPE Barbed|Female JIC/SAE Flared Swivel
CONNECTION TYPE 1 Hose Barbed
CONNECTION TYPE 2 Female 37 deg JIC Dual Seat/SAE 45 deg Flared Swivel
DIMENSIONS 1.42" L
FITTING TYPE Swivel
HEX SIZE 0.56"
MAXIMUM OPERATING PRESSURE 150 psi
OPERATING TEMPERATURE -40 to 160 deg F
THREAD SIZE 7/16-20
BARB LENGTH 0.78"
APPLICATIONS Ideal for Hydraulic Systems, Pneumatic Systems and HVAC Systems
BRAND Midland Industries



Link to Midland Industries Catalog

Midland Industries by Midland Industries

32107C

3/16 Barb X 1/4 Dual Seat Crimp

$2.95
$2.95
