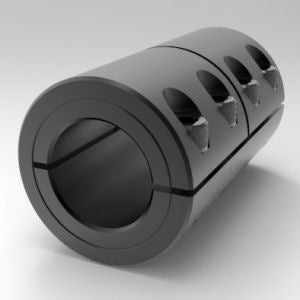

25mm X 25mm Metric Rigid Shaft Coupling One-Piece Split Clamp-Type, Steel
    25mm X 25mm Metric Rigid Shaft Coupling One-Piece Split Clamp-Type, Steel
25mm X 25mm Metric Rigid Shaft Coupling One-Piece Split Clamp-Type, Steel
25mm X 25mm Metric Rigid Shaft Coupling One-Piece Split Clamp-Type, Steel
    25mm X 25mm Metric Rigid Shaft Coupling One-Piece Split Clamp-Type, Steel
25mm X 25mm Metric Rigid Shaft Coupling One-Piece Split Clamp-Type, Steel
Description
  • Fully metric, including clamp screws
  • Mate two shafts with zero backlash
  • Smooth bore protects shafts from damage
  • Superior torque capacity over set-screw-type couplings
Stafford Metric Rigid Shaft Couplings are fully metric in all specifications, including the clamping screws.

Designed for aligned shafts, the 1-Piece Clamp-Type Coupling makes two shafts function as one.

Metric Clamp-Type Couplings are available in straight-through bores. They are precision machined, non-marring, easy to adjust, with high clamping power.

Stocked in:
  • Steel
  • Stainless Steel


Specifications

Part Number

 5LM025025

Series

 Signature

Material

 Steel

Alloy

 12L14

Finish

 Black Oxide

Type

 Low Profile

Approximate Weight

 1.15 lb

Country of Origin

 USA

UPC Code

 662786020223

RoHS2 Compliant

 Yes

REACH Compliant

 Yes



Dimensional Attributes

Bore Size A



 25 mm

Bore Size B



 25 mm

Outside Diameter

 45 mm

Total Length

 65 mm

Recessed Screw

 No

Screw Size

 M6 x 1.0 x 16MM

Screw Material

 Alloy Steel
Description
  • Fully metric, including clamp screws
  • Mate two shafts with zero backlash
  • Smooth bore protects shafts from damage
  • Superior torque capacity over set-screw-type couplings
Stafford Metric Rigid Shaft Couplings are fully metric in all specifications, including the clamping screws.

Designed for aligned shafts, the 1-Piece Clamp-Type Coupling makes two shafts function as one.

Metric Clamp-Type Couplings are available in straight-through bores. They are precision machined, non-marring, easy to adjust, with high clamping power.

Stocked in:
  • Steel
  • Stainless Steel


Specifications

Part Number

 5LM025025

Series

 Signature

Material

 Steel

Alloy

 12L14

Finish

 Black Oxide

Type

 Low Profile

Approximate Weight

 1.15 lb

Country of Origin

 USA

UPC Code

 662786020223

RoHS2 Compliant

 Yes

REACH Compliant

 Yes



Dimensional Attributes

Bore Size A



 25 mm

Bore Size B



 25 mm

Outside Diameter

 45 mm

Total Length

 65 mm

Recessed Screw

 No

Screw Size

 M6 x 1.0 x 16MM

Screw Material

 Alloy Steel
