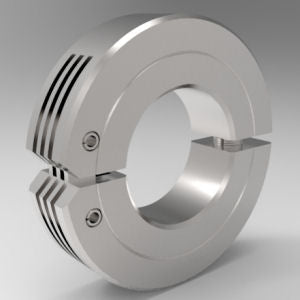

25mm Metric Shaft Collar Hinge Type, Stainless Steel
    25mm Metric Shaft Collar Hinge Type, Stainless Steel
25mm Metric Shaft Collar Hinge Type, Stainless Steel
25mm Metric Shaft Collar Hinge Type, Stainless Steel
    25mm Metric Shaft Collar Hinge Type, Stainless Steel
25mm Metric Shaft Collar Hinge Type, Stainless Steel
Description
  • Fully metric, including clamp screw
  • Easy to handle – no loose screws
  • Can be assembled anywhere on shaft
  • Smooth bore protects shafts from damage
  • Stocked in steel and stainless steel
Stafford Metric Shaft Collars are fully metric in all specifications, including the clamping screws.

Available only from Stafford, the Hinge Collar features a triple-link hinge and captive screw in one unit, combining the flexibility of the two-piece collar with the simplicity of the one-piece.

Stafford’s exclusive Hinge Shaft Collars are perfect where fast operation is required, such as hostile environments or situations where there are space and time constraints. Hinge Shaft Collars are functionally similar to two-piece collars, for use on standard round shafts, hard or soft, as well as on thin wall tube or over a split hub.

They are easy to assemble, reposition, and take apart; eliminating fumbling, lost screws and wasted time. Hinge Shaft Collars provide the same axial holding power as conventional collars. They have a smooth bore that will not damage shafts.

Stocked in:
  • Steel
  • Stainless Steel



Specifications

Part Number

2SM025H

Series

Signature

Material

Stainless Steel

Alloy

303

Finish

Shiny

Type

Low Profile

Approximate Weight

0.25 lb

Country of Origin

USA

UPC Code

662786020063

RoHS2 Compliant

Yes

REACH Compliant

Yes



Dimensional Attributes

Bore Size

25 mm

Outside Diameter

45 mm

Recessed Screw

No

Screw Size

M6 x 1.0 x 16MM

Screw Material

18-8 Stainless Steel

Width

15 mm
Description
  • Fully metric, including clamp screw
  • Easy to handle – no loose screws
  • Can be assembled anywhere on shaft
  • Smooth bore protects shafts from damage
  • Stocked in steel and stainless steel
Stafford Metric Shaft Collars are fully metric in all specifications, including the clamping screws.

Available only from Stafford, the Hinge Collar features a triple-link hinge and captive screw in one unit, combining the flexibility of the two-piece collar with the simplicity of the one-piece.

Stafford’s exclusive Hinge Shaft Collars are perfect where fast operation is required, such as hostile environments or situations where there are space and time constraints. Hinge Shaft Collars are functionally similar to two-piece collars, for use on standard round shafts, hard or soft, as well as on thin wall tube or over a split hub.

They are easy to assemble, reposition, and take apart; eliminating fumbling, lost screws and wasted time. Hinge Shaft Collars provide the same axial holding power as conventional collars. They have a smooth bore that will not damage shafts.

Stocked in:
  • Steel
  • Stainless Steel



Specifications

Part Number

2SM025H

Series

Signature

Material

Stainless Steel

Alloy

303

Finish

Shiny

Type

Low Profile

Approximate Weight

0.25 lb

Country of Origin

USA

UPC Code

662786020063

RoHS2 Compliant

Yes

REACH Compliant

Yes



Dimensional Attributes

Bore Size

25 mm

Outside Diameter

45 mm

Recessed Screw

No

Screw Size

M6 x 1.0 x 16MM

Screw Material

18-8 Stainless Steel

Width

15 mm
STAFFORD MANUFACTURING CORP. by STAFFORD MANUFACTURING CORP.

Translation missing: en.products.product.sku:2SM025H

25mm Metric Shaft Collar Hinge Type, Stainless Steel

Regular price
$100.80
Sale price
$100.80
