The 2-1/2 x Close Galvanized Steel Nipple is a short, threaded pipe fitting used to connect two female-threaded fittings or pipes in a straight-line configuration. "Close" indicates that the threads nearly meet at the center, leaving minimal unthreaded space. The 2-1/2-inch length offers a compact and efficient connection for medium to high-pressure applications. Constructed from galvanized steel, this nipple offers superior corrosion resistance, making it ideal for water, gas, air, and industrial applications.
| Specification | Details |
|---|---|
| TYPE | Steel Nipple |
| DESIGN | Close nipple design minimizes space between fittings for compact installations |
| MATERIAL |
Steel for high strength and resistance to corrosion |
| MATERIAL CONSTRUCTION | Steel |
| WEIGHT (LBS) |
0.800 |
| CONNECTION SIZE 1 |
2-1/2" |
| CONNECTION SIZE 2 |
2-1/2" |
| CONNECTION TYPE |
MPT|MPT |
| CONNECTION TYPE 1 |
MPT |
| CONNECTION TYPE 2 |
MPT |
| DIAMETER |
2-1/2" |
| DIMENSION STANDARDS |
ANSI B1.20.1 |
| FINISH |
Galvanized |
| FITTING TYPE | Nipple |
| LENGTH | 2-1/2" |
| PRESSURE CLASS | 150 lb |
| PRESSURE RATING | 2500 psi |
| SCHEDULE RATING | SCH 40 |
| THREAD LENGTH | 1.57" |
| THREAD SIZE | 2-1/2-8 |
| WALL THICKNESS | 0.203" |
| APPROXIMATE WEIGHT (LBS) | 1.09 |
| BOX/CASE | 1/20 |
| NOTES | Grade B |
| APPLICATIONS |
Ideal for plumbing & water systems, gas & fuel lines, HVAC & air systems, industrial applications |
| BRAND | Midland Industries |
The 2-1/2 x Close Galvanized Steel Nipple is a short, threaded pipe fitting used to connect two female-threaded fittings or pipes in a straight-line configuration. "Close" indicates that the threads nearly meet at the center, leaving minimal unthreaded space. The 2-1/2-inch length offers a compact and efficient connection for medium to high-pressure applications. Constructed from galvanized steel, this nipple offers superior corrosion resistance, making it ideal for water, gas, air, and industrial applications.
| Specification | Details |
|---|---|
| TYPE | Steel Nipple |
| DESIGN | Close nipple design minimizes space between fittings for compact installations |
| MATERIAL |
Steel for high strength and resistance to corrosion |
| MATERIAL CONSTRUCTION | Steel |
| WEIGHT (LBS) |
0.800 |
| CONNECTION SIZE 1 |
2-1/2" |
| CONNECTION SIZE 2 |
2-1/2" |
| CONNECTION TYPE |
MPT|MPT |
| CONNECTION TYPE 1 |
MPT |
| CONNECTION TYPE 2 |
MPT |
| DIAMETER |
2-1/2" |
| DIMENSION STANDARDS |
ANSI B1.20.1 |
| FINISH |
Galvanized |
| FITTING TYPE | Nipple |
| LENGTH | 2-1/2" |
| PRESSURE CLASS | 150 lb |
| PRESSURE RATING | 2500 psi |
| SCHEDULE RATING | SCH 40 |
| THREAD LENGTH | 1.57" |
| THREAD SIZE | 2-1/2-8 |
| WALL THICKNESS | 0.203" |
| APPROXIMATE WEIGHT (LBS) | 1.09 |
| BOX/CASE | 1/20 |
| NOTES | Grade B |
| APPLICATIONS |
Ideal for plumbing & water systems, gas & fuel lines, HVAC & air systems, industrial applications |
| BRAND | Midland Industries |
SKU:56180

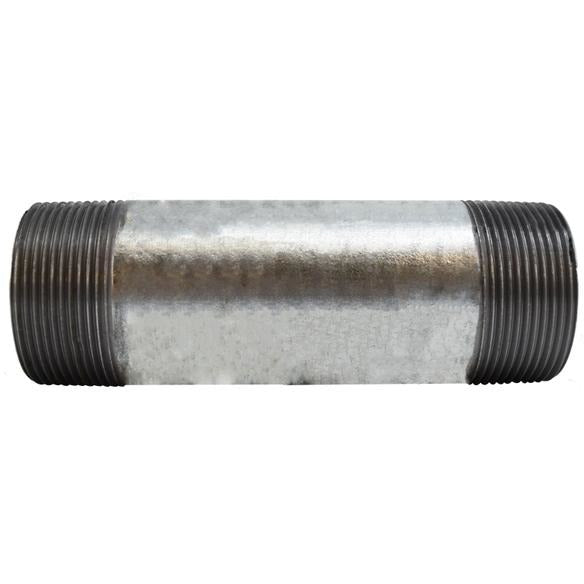

2-1/2 x Close Galvanized Steel Nipple
- Regular price
- $31.39
- Sale price
- $31.39
