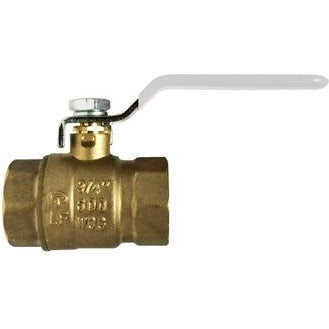

A brass full port ball valve with a white handle, marked with CSA and lead-free certification.
    A brass full port ball valve with a white handle, marked with CSA and lead-free certification.
A brass full port ball valve with a white handle, marked with CSA and lead-free certification.
A brass full port ball valve with a white handle, marked with CSA and lead-free certification.
    A brass full port ball valve with a white handle, marked with CSA and lead-free certification.
A brass full port ball valve with a white handle, marked with CSA and lead-free certification.
Description
The 2-1/2 Canadian Standards Association Lead-free Female x Female Full Port Ball Valve is a large-diameter valve designed for applications requiring maximum flow control. It features female threads on both ends (FXF) and complies with CSA (Canadian Standards Association) standards, ensuring safety and reliability. This full port ball valve offers unrestricted flow, making it ideal for high-flow systems such as commercial plumbing, heating, cooling, and industrial fluid handling applications. Its lead-free construction meets standards for potable water use, ensuring compliance with health and safety regulations.

Specification Value
TYPE Canadian Standards Association Lead-free Female x Female Full Port Ball Valve
DESIGN Full port design, ensures unobstructed flow with a larger flow path than standard valves, reducing pressure drops.
STEM MATERIAL Brass for durability and corrosion resistance.
SEAT MATERIAL PTFE
WEIGHT (lbs) 7.245
BALL MATERIAL Stainless Steel
BODY MATERIAL Lead-Free Forged Brass
CONNECTION TYPE FIP x FIP
DOMESTIC/IMPORT Import
HANDLE MATERIAL Plated Steel
INLET TO OUTLET LENGTH 5.53"
LEAD-FREE/CONTAINS LEAD Lead-Free
NOMINAL SIZE 2-1/2"
OPERATOR TYPE Handle
PACKING MATERIAL PTFE
PORT TYPE Full
PRESSURE RATING 600 psi WOG
TEMPERATURE RATING -40 to 365 deg F
TOP TO INLET CENTER 4-1/4"
TRIM MATERIAL Plated Steel Handle Nut and Lock Washer
APPLICATIONS  Ideal for Potable Water Systems, Commercial and Residential Plumbing, HVAC Systems, Industrial Fluid Systems, Irrigation Systems, and Fire Protection Systems.
BRAND Midland Industries

Link to Midland Industries Catalog
Description
The 2-1/2 Canadian Standards Association Lead-free Female x Female Full Port Ball Valve is a large-diameter valve designed for applications requiring maximum flow control. It features female threads on both ends (FXF) and complies with CSA (Canadian Standards Association) standards, ensuring safety and reliability. This full port ball valve offers unrestricted flow, making it ideal for high-flow systems such as commercial plumbing, heating, cooling, and industrial fluid handling applications. Its lead-free construction meets standards for potable water use, ensuring compliance with health and safety regulations.

Specification Value
TYPE Canadian Standards Association Lead-free Female x Female Full Port Ball Valve
DESIGN Full port design, ensures unobstructed flow with a larger flow path than standard valves, reducing pressure drops.
STEM MATERIAL Brass for durability and corrosion resistance.
SEAT MATERIAL PTFE
WEIGHT (lbs) 7.245
BALL MATERIAL Stainless Steel
BODY MATERIAL Lead-Free Forged Brass
CONNECTION TYPE FIP x FIP
DOMESTIC/IMPORT Import
HANDLE MATERIAL Plated Steel
INLET TO OUTLET LENGTH 5.53"
LEAD-FREE/CONTAINS LEAD Lead-Free
NOMINAL SIZE 2-1/2"
OPERATOR TYPE Handle
PACKING MATERIAL PTFE
PORT TYPE Full
PRESSURE RATING 600 psi WOG
TEMPERATURE RATING -40 to 365 deg F
TOP TO INLET CENTER 4-1/4"
TRIM MATERIAL Plated Steel Handle Nut and Lock Washer
APPLICATIONS  Ideal for Potable Water Systems, Commercial and Residential Plumbing, HVAC Systems, Industrial Fluid Systems, Irrigation Systems, and Fire Protection Systems.
BRAND Midland Industries

Link to Midland Industries Catalog
Midland Industries by Midland Industries

941159LF

2 1/2 Canadian Standards Association Lead-free Female x Female Full Port Ball Valve

$2,075.26
