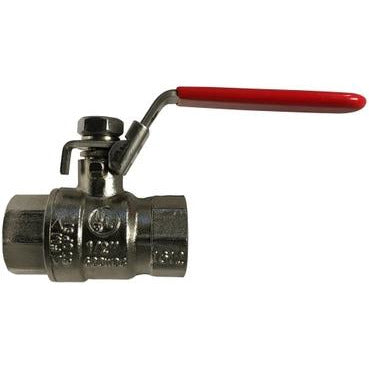

The 11/4 National Pipe Underwriters Laboratories Factory Mutual Canadian Standards Association Stainless Steel Trim Full Port Ball Valve Locking Handle is a high-performance, heavy-duty shut-off valve designed for industrial, commercial, and fire protection applications. This valve features a full port design, allowing maximum flow with minimal pressure drop, and is equipped with a locking handle for security and safety compliance. Certified by UL (Underwriters Laboratories), FM (Factory Mutual), and CSA (Canadian Standards Association), it meets stringent industry standards for quality, safety, and reliability. Workhorse valve with SS trim.
Order now for fast shipping and professional-grade results.
| Specification | Details |
|---|---|
| TYPE | Full Port Ball Valve Locking Handle |
| DESIGN |
Full port design allows unrestricted flow, minimizing pressure drop |
| WEIGHT | 1.8 |
| BALL MATERIAL | Stainless Steel |
| BODY MATERIAL | Forged Brass |
| CONNECTION TYPE | FPT x FPT |
| FINISH | Nickel-Plated |
| FLOW COEFFICIENT (CV) | 84.42 cv |
| HANDLE MATERIAL | Stainless Steel |
| INLET TO OUTLET LENGTH | 3.44" |
| NOMINAL SIZE | 1-1/4" |
| OPERATOR TYPE | Locking Handle |
| PACKAGING MATERIAL | PTFE |
| PORT TYPE | Full |
| PRESSURE RATING | 600 ps iWOG |
| SEAT MATERIAL | PTFE |
| STEM MATERIAL | Stainless Steel |
| TEMPERATURE RATING | -20 to 300 deg F |
| TOP TO INLET CENTER | 3.05" |
| TRIM MATERIAL | Stainless Steel Handle Nut and Lock Washer/Nickel-Plated Brass Packing Nut/Fluoroelastomer O-Ring |
| THREAD SIZE | 1-1/4-11-1/2 |
| APPLICATIONS | Ideal for Plumbing & Water Systems, HVAC & Compressed Air Systems, Plumbing & Water Systems, Industrial & Chemical Processing |
| BRAND | Midland Industries |
The 11/4 National Pipe Underwriters Laboratories Factory Mutual Canadian Standards Association Stainless Steel Trim Full Port Ball Valve Locking Handle is a high-performance, heavy-duty shut-off valve designed for industrial, commercial, and fire protection applications. This valve features a full port design, allowing maximum flow with minimal pressure drop, and is equipped with a locking handle for security and safety compliance. Certified by UL (Underwriters Laboratories), FM (Factory Mutual), and CSA (Canadian Standards Association), it meets stringent industry standards for quality, safety, and reliability. Workhorse valve with SS trim.
Order now for fast shipping and professional-grade results.
| Specification | Details |
|---|---|
| TYPE | Full Port Ball Valve Locking Handle |
| DESIGN |
Full port design allows unrestricted flow, minimizing pressure drop |
| WEIGHT | 1.8 |
| BALL MATERIAL | Stainless Steel |
| BODY MATERIAL | Forged Brass |
| CONNECTION TYPE | FPT x FPT |
| FINISH | Nickel-Plated |
| FLOW COEFFICIENT (CV) | 84.42 cv |
| HANDLE MATERIAL | Stainless Steel |
| INLET TO OUTLET LENGTH | 3.44" |
| NOMINAL SIZE | 1-1/4" |
| OPERATOR TYPE | Locking Handle |
| PACKAGING MATERIAL | PTFE |
| PORT TYPE | Full |
| PRESSURE RATING | 600 ps iWOG |
| SEAT MATERIAL | PTFE |
| STEM MATERIAL | Stainless Steel |
| TEMPERATURE RATING | -20 to 300 deg F |
| TOP TO INLET CENTER | 3.05" |
| TRIM MATERIAL | Stainless Steel Handle Nut and Lock Washer/Nickel-Plated Brass Packing Nut/Fluoroelastomer O-Ring |
| THREAD SIZE | 1-1/4-11-1/2 |
| APPLICATIONS | Ideal for Plumbing & Water Systems, HVAC & Compressed Air Systems, Plumbing & Water Systems, Industrial & Chemical Processing |
| BRAND | Midland Industries |
SKU:941126NP
11/4 National Pipe UL FM CSA Stainless Steel Trim Full Port Ball Valve Locking Handle
- Regular price
- $47.82
- Sale price
- $47.82
