The 1" x 1" Female Inverted Flare x Male Iron Pipe 90 deg Elbow is a durable and reliable 90-degree fitting designed to create secure, right-angle connections between pipes or hoses. With a female iron inverted flare on one end for a tight, leak-resistant seal and a male iron pipe thread on the other for a secure connection, this elbow is ideal for use in hydraulic, fuel, and pneumatic systems. It provides a versatile, space-saving solution for applications requiring a reliable 90-degree turn in the piping system.
|
Specification |
Details |
|
TYPE |
Female Inverted Flare x Male Iron Pipe Elbow |
|
DESIGN |
90-Degree Elbow to connect a tube with an inverted flare fitting to a threaded pipe fitting at a right angle. |
|
MATERIAL |
Brass for durability, corrosion resistance, and compatibility |
|
MATERIAL CONSTRUCTION |
Brass |
| ADDITIONAL INFORMATION |
1.02 x 1.69" Center to End |
|
WEIGHT (LBS) |
0.600 |
|
CONNECTION SIZE 1 |
1" |
|
CONNECTION SIZE 2 |
1" |
|
CONNECTION TYPE |
Female Inverted Flared|MNPT |
|
CONNECTION TYPE 1 |
Female Inverted Flared |
|
CONNECTION TYPE 2 |
MNPTF |
|
FOR USE WITH |
Aluminum, Brass, Copper, and Steel Hydraulic Tubing |
|
FITTING TYPE |
90 deg Elbow |
|
TEMPERATURE RATING |
-65 to 250 deg F |
|
THREAD SIZE |
1-5/16-16 x 1-11-1/2 |
|
SAE # |
040202 |
|
APPROX WT LBS |
0.12 |
|
APPLICATIONS |
Ideal for hydraulic systems, fuel lines, pneumatic systems. |
|
BRAND |
Midland Industries |
The 1" x 1" Female Inverted Flare x Male Iron Pipe 90 deg Elbow is a durable and reliable 90-degree fitting designed to create secure, right-angle connections between pipes or hoses. With a female iron inverted flare on one end for a tight, leak-resistant seal and a male iron pipe thread on the other for a secure connection, this elbow is ideal for use in hydraulic, fuel, and pneumatic systems. It provides a versatile, space-saving solution for applications requiring a reliable 90-degree turn in the piping system.
|
Specification |
Details |
|
TYPE |
Female Inverted Flare x Male Iron Pipe Elbow |
|
DESIGN |
90-Degree Elbow to connect a tube with an inverted flare fitting to a threaded pipe fitting at a right angle. |
|
MATERIAL |
Brass for durability, corrosion resistance, and compatibility |
|
MATERIAL CONSTRUCTION |
Brass |
| ADDITIONAL INFORMATION |
1.02 x 1.69" Center to End |
|
WEIGHT (LBS) |
0.600 |
|
CONNECTION SIZE 1 |
1" |
|
CONNECTION SIZE 2 |
1" |
|
CONNECTION TYPE |
Female Inverted Flared|MNPT |
|
CONNECTION TYPE 1 |
Female Inverted Flared |
|
CONNECTION TYPE 2 |
MNPTF |
|
FOR USE WITH |
Aluminum, Brass, Copper, and Steel Hydraulic Tubing |
|
FITTING TYPE |
90 deg Elbow |
|
TEMPERATURE RATING |
-65 to 250 deg F |
|
THREAD SIZE |
1-5/16-16 x 1-11-1/2 |
|
SAE # |
040202 |
|
APPROX WT LBS |
0.12 |
|
APPLICATIONS |
Ideal for hydraulic systems, fuel lines, pneumatic systems. |
|
BRAND |
Midland Industries |
SKU:12081

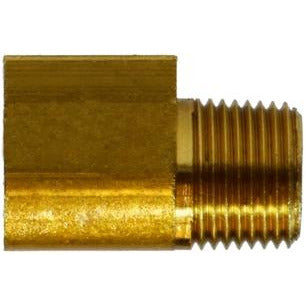

1" x 1" Female Inverted Flare x Male Iron Pipe Elbow
- Regular price
- $167.53
- Sale price
- $167.53
- Regular price
-
Couldn't load pickup availability
