| Specification | Value |
|---|---|
| TYPE | Forged Mini Ball Valve |
| DESIGN | Quarter-turn lever handle, offers quick and smooth shutoff control |
| WEIGHT | 0.100 |
| BALL MATERIAL | Brass provides greater strength and pressure resistance |
| BODY MATERIAL | Forged Brass |
| CONNECTION TYPE | MIP x FIP |
| DOMESTIC/IMPORT | Import |
| DIMENSIONS | 2.9" OAL x 1.32" H |
| DISC MATERIAL | Brass |
| FINISH | Chrome-plated |
| HANDLE MATERIAL | NBR 80 |
| INLET TO OUTLET LENGTH | 1.28" |
| NOMINAL SIZE | 1/8 x 1/4" |
| OPERATOR TYPE | 180 deg Operational Handle |
| PRESSURE RATING | 200 psi WOG |
| SEAT MATERIAL | PTFE |
| STEM MATERIAL | Brass |
| TEMPERATURE RATING | 20 to 250 deg F |
| THREAD SIZE | 1/8-27 x 1/4-18 |
| TRIM MATERIAL | Steel Screw/NBR O-Ring/Steel Nut |
| ADDITIONAL DIMENSION | C 0.66 |
| APPLICATIONS | Ideal for Plumbing & Water Systems, Compressed Air & Pneumatic Systems, Fuel & Oil Lines, HVAC & Refrigeration, Gas & Chemical Processing, Industrial & Mechanical Systems |
| BRAND | Midland Industries |
| Specification | Value |
|---|---|
| TYPE | Forged Mini Ball Valve |
| DESIGN | Quarter-turn lever handle, offers quick and smooth shutoff control |
| WEIGHT | 0.100 |
| BALL MATERIAL | Brass provides greater strength and pressure resistance |
| BODY MATERIAL | Forged Brass |
| CONNECTION TYPE | MIP x FIP |
| DOMESTIC/IMPORT | Import |
| DIMENSIONS | 2.9" OAL x 1.32" H |
| DISC MATERIAL | Brass |
| FINISH | Chrome-plated |
| HANDLE MATERIAL | NBR 80 |
| INLET TO OUTLET LENGTH | 1.28" |
| NOMINAL SIZE | 1/8 x 1/4" |
| OPERATOR TYPE | 180 deg Operational Handle |
| PRESSURE RATING | 200 psi WOG |
| SEAT MATERIAL | PTFE |
| STEM MATERIAL | Brass |
| TEMPERATURE RATING | 20 to 250 deg F |
| THREAD SIZE | 1/8-27 x 1/4-18 |
| TRIM MATERIAL | Steel Screw/NBR O-Ring/Steel Nut |
| ADDITIONAL DIMENSION | C 0.66 |
| APPLICATIONS | Ideal for Plumbing & Water Systems, Compressed Air & Pneumatic Systems, Fuel & Oil Lines, HVAC & Refrigeration, Gas & Chemical Processing, Industrial & Mechanical Systems |
| BRAND | Midland Industries |
SKU:944100

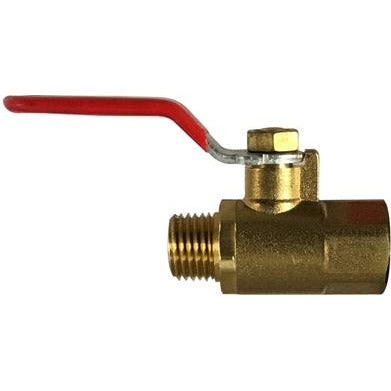

1/8 Male Iron Pipe x 1/4 Female Iron Pipe Forged Mini Ball Valve
- Regular price
- $26.92
- Sale price
- $26.92
