The 1/8" x 1/8" Inverted Flare x Male 45° Elbow is a versatile fitting designed to connect pipes or hoses at a 45-degree angle. It features 1/8" inverted flare connections on both ends, which create a secure, leak-resistant seal for fluid or gas transfer. The male threaded end allows for easy connection to female threaded components. This elbow fitting is commonly used in hydraulic, pneumatic, and fluid systems where space-saving, tight connections are required while maintaining a reliable flow path. Ideal for automotive, plumbing, and industrial applications, it offers flexibility and durability in various setups.
| Specification | Details |
|---|---|
| TYPE | Inverted Flare X Male Elbow |
| DESIGN | 45° Elbow Design for smooth redirection of fluid or gas flow in tight spaces and ensuring a secure, leak-proof attachment. |
| MATERIAL |
Brass corrosion resistance, ease of machining, and reliable performance in fluid and gas system. |
| MATERIAL CONSTRUCTION | Brass |
| ADDITIONAL INFORMATION | 0.22 x 0.48" Center to End |
|
WEIGHT (LBS) |
0.00 |
| CONNECTION SIZE 1 | 1/8" |
| CONNECTION SIZE 1 | 1/8" |
| CONNECTION TYPE | Inverted Flared|MNPT |
| CONNECTION TYPE 1 | Inverted Flared |
| CONNECTION TYPE 2 | Male NPTF |
| DIMENSIONS | 1.26" L |
| HEX SIZE | 1/2" |
| FITTING TYPE | 45 deg Elbow |
| FOR USE WITH | Aluminum, Brass, Copper, Steel Hydraulic Tubing That Can Be Flared |
| THREAD SIZE | 5/16-28 x 1/8-27 |
| PRESSURE RATING | 2800 psi |
| TEMPERATURE RATING |
35 to 100 deg F |
|
TUBE WALL THICKNESS |
0.03" |
|
APPROX WT LBS |
0.03 |
|
SAE# |
040302 |
| APPLICATIONS | Ideal for Hydraulic, Pneumatic and HVAC Systems |
| BRAND | Midland Industries |
The 1/8" x 1/8" Inverted Flare x Male 45° Elbow is a versatile fitting designed to connect pipes or hoses at a 45-degree angle. It features 1/8" inverted flare connections on both ends, which create a secure, leak-resistant seal for fluid or gas transfer. The male threaded end allows for easy connection to female threaded components. This elbow fitting is commonly used in hydraulic, pneumatic, and fluid systems where space-saving, tight connections are required while maintaining a reliable flow path. Ideal for automotive, plumbing, and industrial applications, it offers flexibility and durability in various setups.
| Specification | Details |
|---|---|
| TYPE | Inverted Flare X Male Elbow |
| DESIGN | 45° Elbow Design for smooth redirection of fluid or gas flow in tight spaces and ensuring a secure, leak-proof attachment. |
| MATERIAL |
Brass corrosion resistance, ease of machining, and reliable performance in fluid and gas system. |
| MATERIAL CONSTRUCTION | Brass |
| ADDITIONAL INFORMATION | 0.22 x 0.48" Center to End |
|
WEIGHT (LBS) |
0.00 |
| CONNECTION SIZE 1 | 1/8" |
| CONNECTION SIZE 1 | 1/8" |
| CONNECTION TYPE | Inverted Flared|MNPT |
| CONNECTION TYPE 1 | Inverted Flared |
| CONNECTION TYPE 2 | Male NPTF |
| DIMENSIONS | 1.26" L |
| HEX SIZE | 1/2" |
| FITTING TYPE | 45 deg Elbow |
| FOR USE WITH | Aluminum, Brass, Copper, Steel Hydraulic Tubing That Can Be Flared |
| THREAD SIZE | 5/16-28 x 1/8-27 |
| PRESSURE RATING | 2800 psi |
| TEMPERATURE RATING |
35 to 100 deg F |
|
TUBE WALL THICKNESS |
0.03" |
|
APPROX WT LBS |
0.03 |
|
SAE# |
040302 |
| APPLICATIONS | Ideal for Hydraulic, Pneumatic and HVAC Systems |
| BRAND | Midland Industries |
SKU:12070

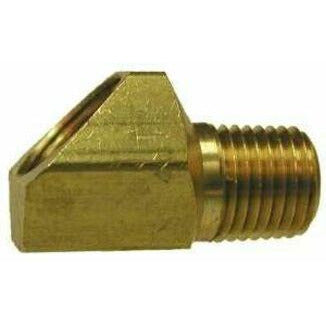

1/8 X 1/8 Inverted Flare X Male 45 Elbow
