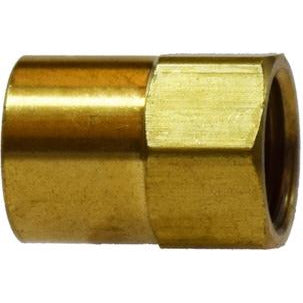

The 1/8" x 1/8" Inverted Flare x Female Straight Adapter is a versatile and compact fitting designed to provide a reliable connection between an inverted flare fitting and a female threaded connection. With a 1/8" female inverted flare on one end and a 1/8" female pipe thread on the other, this adapter allows for a secure and leak-resistant transition in various fluid and gas systems. Ideal for use in hydraulic, pneumatic, and fuel applications, it offers a durable solution for creating tight, dependable connections in space-restricted environments.
|
Specification |
Details |
|
TYPE |
Inverted Flare x Female Adapter |
|
DESIGN |
Straight connector, allows direct, inline connection without changing direction |
|
MATERIAL |
Brass for durability, corrosion resistance, and compatibility |
|
MATERIAL CONSTRUCTION |
Brass |
|
TUBE WALL THICKNESS |
0.03" |
|
CONNECTION SIZE 1 |
1/8" |
|
CONNECTION SIZE 2 |
1/8" |
|
CONNECTION TYPE |
Inverted Flared|FNPT |
|
CONNECTION TYPE 1 |
Inverted Flared |
|
CONNECTION TYPE 2 |
FNPTF |
|
FOR USE WITH |
Aluminum, Brass, Copper, Steel Hydraulic Tubing That Can Be Flared |
|
FITTING TYPE |
Adapter |
|
PRESSURE RATING |
2800 psi |
|
TEMPERATURE RATING |
-65 to 250 deg F |
|
DIMENSIONS |
0.716" L |
|
HEX SIZE |
1/2" |
|
THREAD SIZE |
5/16-28 x 1/8-27 |
|
SHAPE |
Straight/Connector |
|
APPROX WT LBS |
0.03 |
|
APPLICATIONS |
Ideal for hydraulic systems, fuel lines, pneumatic systems and air conditioning and refrigeration. |
|
BRAND |
Midland Industries |
The 1/8" x 1/8" Inverted Flare x Female Straight Adapter is a versatile and compact fitting designed to provide a reliable connection between an inverted flare fitting and a female threaded connection. With a 1/8" female inverted flare on one end and a 1/8" female pipe thread on the other, this adapter allows for a secure and leak-resistant transition in various fluid and gas systems. Ideal for use in hydraulic, pneumatic, and fuel applications, it offers a durable solution for creating tight, dependable connections in space-restricted environments.
|
Specification |
Details |
|
TYPE |
Inverted Flare x Female Adapter |
|
DESIGN |
Straight connector, allows direct, inline connection without changing direction |
|
MATERIAL |
Brass for durability, corrosion resistance, and compatibility |
|
MATERIAL CONSTRUCTION |
Brass |
|
TUBE WALL THICKNESS |
0.03" |
|
CONNECTION SIZE 1 |
1/8" |
|
CONNECTION SIZE 2 |
1/8" |
|
CONNECTION TYPE |
Inverted Flared|FNPT |
|
CONNECTION TYPE 1 |
Inverted Flared |
|
CONNECTION TYPE 2 |
FNPTF |
|
FOR USE WITH |
Aluminum, Brass, Copper, Steel Hydraulic Tubing That Can Be Flared |
|
FITTING TYPE |
Adapter |
|
PRESSURE RATING |
2800 psi |
|
TEMPERATURE RATING |
-65 to 250 deg F |
|
DIMENSIONS |
0.716" L |
|
HEX SIZE |
1/2" |
|
THREAD SIZE |
5/16-28 x 1/8-27 |
|
SHAPE |
Straight/Connector |
|
APPROX WT LBS |
0.03 |
|
APPLICATIONS |
Ideal for hydraulic systems, fuel lines, pneumatic systems and air conditioning and refrigeration. |
|
BRAND |
Midland Industries |
SKU:12029
1/8" x 1/8" Inverted Flare x Female Adapter
- Regular price
- $14.33
- Sale price
- $14.33
- Regular price
-
Couldn't load pickup availability
