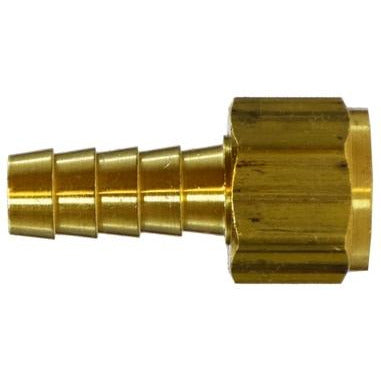

The 1/8" x 1/8" Hose Barb x Female Gasket Swivel Adapter with O-Ring Seal Gasket is a small yet sturdy fitting designed for secure and flexible connections in compact systems. Featuring a 1/8" hose barb for easy attachment to hoses and a 1/8" female threaded connection, it ensures a tight, leak-free seal with the help of its integrated gasket. The swivel design allows for smooth rotation, reducing stress on hoses and improving maneuverability. Perfect for low-flow pneumatic or fluid systems where space is limited but a reliable connection is crucial.
| Specification | Details |
|---|---|
| TYPE | Hose Barb X Female Gasket Swivel |
| DESIGN | Swivel Design allows easy, resistance-free movement during installation and smooth rotation |
| MATERIAL | Brass for durability and corrosion resistance |
|
MATERIAL CONSTRUCTION |
Brass |
| BARB LENGTH | 0.46" |
| WEIGHT (LBS) | 0.020 |
| CONNECTION SIZE 1 | 1/8" |
| CONNECTION SIZE 1 | 1/8" |
| CONNECTION TYPE | Hose|Male BSP |
| CONNECTION TYPE 1 | Male BSPT |
| CONNECTION TYPE 2 | FNPSM Gasket Swivel |
| DIMENSIONS | 0.9" L |
| HEX SIZE | 1/2" |
| FITTING TYPE | Adapter |
| FOR USE WITH | Hose Clamp, Similar Type Clamp or A Crimped Ferrules |
| THREAD SIZE | 1/8-27 |
| MAXIMUM OPERATING PRESSURE | 150 deg F |
| OPERATING TEMPERATURE |
-40 to 160 deg F |
| SUBHEADING | • NPSM Thread National Pipe Straight Gasket Seal Swivel |
| NOTES |
• Not recommend for water due to fiber gasket - for air service only |
| APPLICATIONS | Ideal for gas lines, hydraulic systems, automotive applications and pneumatic systems |
| BRAND | Midland Industries |
The 1/8" x 1/8" Hose Barb x Female Gasket Swivel Adapter with O-Ring Seal Gasket is a small yet sturdy fitting designed for secure and flexible connections in compact systems. Featuring a 1/8" hose barb for easy attachment to hoses and a 1/8" female threaded connection, it ensures a tight, leak-free seal with the help of its integrated gasket. The swivel design allows for smooth rotation, reducing stress on hoses and improving maneuverability. Perfect for low-flow pneumatic or fluid systems where space is limited but a reliable connection is crucial.
| Specification | Details |
|---|---|
| TYPE | Hose Barb X Female Gasket Swivel |
| DESIGN | Swivel Design allows easy, resistance-free movement during installation and smooth rotation |
| MATERIAL | Brass for durability and corrosion resistance |
|
MATERIAL CONSTRUCTION |
Brass |
| BARB LENGTH | 0.46" |
| WEIGHT (LBS) | 0.020 |
| CONNECTION SIZE 1 | 1/8" |
| CONNECTION SIZE 1 | 1/8" |
| CONNECTION TYPE | Hose|Male BSP |
| CONNECTION TYPE 1 | Male BSPT |
| CONNECTION TYPE 2 | FNPSM Gasket Swivel |
| DIMENSIONS | 0.9" L |
| HEX SIZE | 1/2" |
| FITTING TYPE | Adapter |
| FOR USE WITH | Hose Clamp, Similar Type Clamp or A Crimped Ferrules |
| THREAD SIZE | 1/8-27 |
| MAXIMUM OPERATING PRESSURE | 150 deg F |
| OPERATING TEMPERATURE |
-40 to 160 deg F |
| SUBHEADING | • NPSM Thread National Pipe Straight Gasket Seal Swivel |
| NOTES |
• Not recommend for water due to fiber gasket - for air service only |
| APPLICATIONS | Ideal for gas lines, hydraulic systems, automotive applications and pneumatic systems |
| BRAND | Midland Industries |
SKU:32131
1/8 X 1/8 Hose Barb X Female Gasket Swivel
- Regular price
- $14.40
- Sale price
- $14.40
