The 1/8 Male Iron Pipe Multi Purpose Air Vent is a specialized valve designed for controlling air or gas flow, where the needle valve design allows for fine adjustments of flow. It helps in regulating pressure or venting excess air or gas to ensure that the system functions properly. With its compact nominal size, it is well-suited for applications where space is tight but precise venting is required.
| Specification | Details |
|---|---|
| TYPE | Air Vent |
| DESIGN | Compact and sturdy design for space-efficiency and precise control |
| BODY MATERIAL | Brass for durability and corrosion-resistance |
|
WEIGHT (lbs) |
0.010 |
| CONNECTION TYPE | MIP |
|
DIMENSIONS |
0.78" length |
| DOMESTIC/IMPORT | Import |
| HANDLE MATERIAL | Steel |
| INLET TO OUTLET LENGTH | 0.78" |
| LEAD-FREE/CONTAINS LEAD | Contains Lead |
| NOMINAL SIZE | 1/8" |
| PRESSURE RATING | 150 psi |
| SEAT MATERIAL | Metal |
| THREAD SIZE | 1/8-27 |
| HEX SIZE | 0.43" |
| SHAPE | Straight/Connector |
| APPROXIMATE WEIGHT (LBS) | 0.02 |
| APPLICATIONS |
Ideal for ventilation and pressure management in pneumatic and gas systems |
| BRAND | Midland Industries |
The 1/8 Male Iron Pipe Multi Purpose Air Vent is a specialized valve designed for controlling air or gas flow, where the needle valve design allows for fine adjustments of flow. It helps in regulating pressure or venting excess air or gas to ensure that the system functions properly. With its compact nominal size, it is well-suited for applications where space is tight but precise venting is required.
| Specification | Details |
|---|---|
| TYPE | Air Vent |
| DESIGN | Compact and sturdy design for space-efficiency and precise control |
| BODY MATERIAL | Brass for durability and corrosion-resistance |
|
WEIGHT (lbs) |
0.010 |
| CONNECTION TYPE | MIP |
|
DIMENSIONS |
0.78" length |
| DOMESTIC/IMPORT | Import |
| HANDLE MATERIAL | Steel |
| INLET TO OUTLET LENGTH | 0.78" |
| LEAD-FREE/CONTAINS LEAD | Contains Lead |
| NOMINAL SIZE | 1/8" |
| PRESSURE RATING | 150 psi |
| SEAT MATERIAL | Metal |
| THREAD SIZE | 1/8-27 |
| HEX SIZE | 0.43" |
| SHAPE | Straight/Connector |
| APPROXIMATE WEIGHT (LBS) | 0.02 |
| APPLICATIONS |
Ideal for ventilation and pressure management in pneumatic and gas systems |
| BRAND | Midland Industries |
SKU:46048

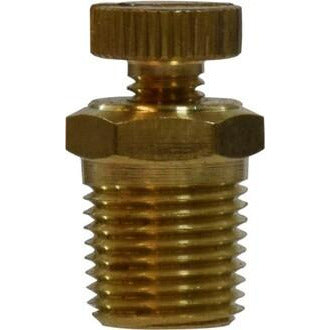

1/8 Male Iron Pipe Multi Purpose Air Vent
- Regular price
- $6.41
- Sale price
- $6.41
- Regular price
-
