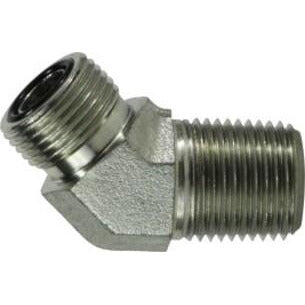

A silver-colored 45-degree elbow pipe fitting with male ORFS and MNPT connections - 1-7/16-12 X 1 Male O-Ring Face Seal x Male National Pipe Thread 45 Elbow
    A silver-colored 45-degree elbow pipe fitting with male ORFS and MNPT connections - 1-7/16-12 X 1 Male O-Ring Face Seal x Male National Pipe Thread 45 Elbow
A silver-colored 45-degree elbow pipe fitting with male ORFS and MNPT connections - 1-7/16-12 X 1 Male O-Ring Face Seal x Male National Pipe Thread 45 Elbow
A silver-colored 45-degree elbow pipe fitting with male ORFS and MNPT connections - 1-7/16-12 X 1 Male O-Ring Face Seal x Male National Pipe Thread 45 Elbow
    A silver-colored 45-degree elbow pipe fitting with male ORFS and MNPT connections - 1-7/16-12 X 1 Male O-Ring Face Seal x Male National Pipe Thread 45 Elbow
A silver-colored 45-degree elbow pipe fitting with male ORFS and MNPT connections - 1-7/16-12 X 1 Male O-Ring Face Seal x Male National Pipe Thread 45 Elbow
Description
The 1-7/16-12 X 1 Male O-Ring Face Seal x Male National Pipe Thread 45 Elbow is a high-performance fitting designed to change the direction of fluid flow while providing a secure and leak-proof seal. Featuring MORFS and MNPT connections, this fitting is ideal for hydraulic, pneumatic, and automotive systems. It offers a 45° angle for directional flexibility in tight spaces or systems with space constraints, making it versatile and reliable in demanding applications.


Specification Value
TYPE Male O-Ring Face Seal x Male National Pipe Thread 45 Elbow
DESIGN 45° Elbow Design, ideal for installations where space is tight
MATERIAL Steel for long-lasting durability and corrosion resistance.
MATERIAL CONSTRUCTION Steel
WEIGHT (lbs) 0.71
CONNECTION SIZE 1
 1"
CONNECTION SIZE 2 1"
CONNECTION TYPE MORFS|MNPTF
CONNECTION TYPE 1 Male O-Ring Face Seal
CONNECTION TYPE 2 Male NPTF
FITTING TYPE 45 deg Elbow
MAXIMUM OPERATING PRESSURE 5000 psi
OPERATING TEMPERATURE 375 deg F
SERIES FS2503
THREAD SIZE 1 1-7/16-12
THREAD SIZE 2 1-11-1/2
APPLICATIONS  Ideal for Hydraulic Systems, Pneumatic Systems, Manufacturing Equipment, Automotive Systems
BRAND Midland Industries

Link to Midland Industries Catalog
Description
The 1-7/16-12 X 1 Male O-Ring Face Seal x Male National Pipe Thread 45 Elbow is a high-performance fitting designed to change the direction of fluid flow while providing a secure and leak-proof seal. Featuring MORFS and MNPT connections, this fitting is ideal for hydraulic, pneumatic, and automotive systems. It offers a 45° angle for directional flexibility in tight spaces or systems with space constraints, making it versatile and reliable in demanding applications.


Specification Value
TYPE Male O-Ring Face Seal x Male National Pipe Thread 45 Elbow
DESIGN 45° Elbow Design, ideal for installations where space is tight
MATERIAL Steel for long-lasting durability and corrosion resistance.
MATERIAL CONSTRUCTION Steel
WEIGHT (lbs) 0.71
CONNECTION SIZE 1
 1"
CONNECTION SIZE 2 1"
CONNECTION TYPE MORFS|MNPTF
CONNECTION TYPE 1 Male O-Ring Face Seal
CONNECTION TYPE 2 Male NPTF
FITTING TYPE 45 deg Elbow
MAXIMUM OPERATING PRESSURE 5000 psi
OPERATING TEMPERATURE 375 deg F
SERIES FS2503
THREAD SIZE 1 1-7/16-12
THREAD SIZE 2 1-11-1/2
APPLICATIONS  Ideal for Hydraulic Systems, Pneumatic Systems, Manufacturing Equipment, Automotive Systems
BRAND Midland Industries

Link to Midland Industries Catalog
Midland Industries by Midland Industries

FS25031616

1-7/16-12 X 1 Male O-Ring Face Seal x Male National Pipe Thread 45 Elbow

$3.75
$3.75
