The 1-5/8-12 × 1-5/16-12 Male Joint Industry Council × Male O-Ring Boss 45° Elbow is a precision hydraulic fitting designed to connect JIC (37° flare) and O-Ring Boss (ORB) components at a 45-degree angle. Engineered for high-pressure fluid systems, it provides a secure, leak-resistant connection while enabling smooth directional changes in hydraulic lines. Constructed from durable, corrosion-resistant materials, this elbow delivers reliable performance in industrial, automotive, and heavy-duty hydraulic applications, making it ideal for adapting or extending fluid transfer systems with precision and efficiency.
|
SPECIFICATIONS |
DETAILS |
| TYPE | Male Joint Council x Male O-Ring Boss 45 Elbow |
| DESIGN |
45° Elbow Shape – Changes the direction of fluid flow by 45°, allowing compact routing in hydraulic or fluid systems.
|
| MATERIAL | Steel - High corrosion resistance, strength, and durability |
| MATERIAL CONSTRUCTION | Steel |
| WEIGHT | |
| CONNECTION SIZE 1 | 1-1/4" |
| CONNECTION SIZE 2 | 1" |
| CONNECTION TYPE | MJIC|MAORB |
| CONNECTION TYPE 1 | Male JIC |
| CONNECTION TYPE 2 | Male Adjustable O-Ring Boss |
| FITTING TYPE | 45-deg Elbow |
| MAXIMUM OPERATING PRESSURE | 2300 psi |
| OPERATING TEMPERATURE | 375 °F |
| SERIES | 6802-NWO |
| THREAD SIZE 1 | 1-5/8 - 12 |
| THREAD SIZE 2 | 1-5/16 - 12 |
| APPLICATION | Ideal for Hydraulic, Industrial, Automotive, Truck and Trailer, Agricultural |
| BRAND | Midland Industries |
The 1-5/8-12 × 1-5/16-12 Male Joint Industry Council × Male O-Ring Boss 45° Elbow is a precision hydraulic fitting designed to connect JIC (37° flare) and O-Ring Boss (ORB) components at a 45-degree angle. Engineered for high-pressure fluid systems, it provides a secure, leak-resistant connection while enabling smooth directional changes in hydraulic lines. Constructed from durable, corrosion-resistant materials, this elbow delivers reliable performance in industrial, automotive, and heavy-duty hydraulic applications, making it ideal for adapting or extending fluid transfer systems with precision and efficiency.
|
SPECIFICATIONS |
DETAILS |
| TYPE | Male Joint Council x Male O-Ring Boss 45 Elbow |
| DESIGN |
45° Elbow Shape – Changes the direction of fluid flow by 45°, allowing compact routing in hydraulic or fluid systems.
|
| MATERIAL | Steel - High corrosion resistance, strength, and durability |
| MATERIAL CONSTRUCTION | Steel |
| WEIGHT | |
| CONNECTION SIZE 1 | 1-1/4" |
| CONNECTION SIZE 2 | 1" |
| CONNECTION TYPE | MJIC|MAORB |
| CONNECTION TYPE 1 | Male JIC |
| CONNECTION TYPE 2 | Male Adjustable O-Ring Boss |
| FITTING TYPE | 45-deg Elbow |
| MAXIMUM OPERATING PRESSURE | 2300 psi |
| OPERATING TEMPERATURE | 375 °F |
| SERIES | 6802-NWO |
| THREAD SIZE 1 | 1-5/8 - 12 |
| THREAD SIZE 2 | 1-5/16 - 12 |
| APPLICATION | Ideal for Hydraulic, Industrial, Automotive, Truck and Trailer, Agricultural |
| BRAND | Midland Industries |
SKU:6802NWO2016

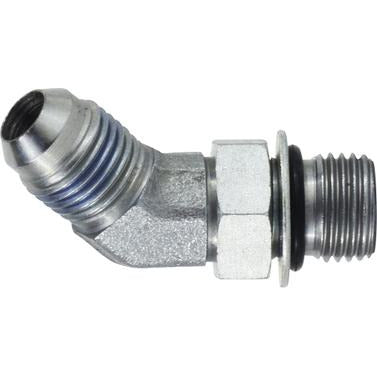

1-5/8-12 x 1-5/16-12 Male Joint Council x Male O-Ring Boss 45 Elbow
- Regular price
- $13.71
- Sale price
- $13.71
- Regular price
-
