The 1-5/16-12X1-11 Joint Industry Council x Male British Standard Pipe Parallel 45 Elbow is a high-quality hydraulic fitting designed to transition from a JIC 37° flare fitting to a BSPP threaded connection at a 45-degree angle. This fitting is ideal for hydraulic, pneumatic, and industrial fluid transfer systems, providing secure, leak-free connections and improving hose and pipe routing. The angled design reduces stress on hoses, ensuring durability and reliability in high-pressure applications.
| Specification | Details |
|---|---|
| TYPE | Male British Standard Pipe Parallel 45 Elbow |
| DESIGN |
45-Degree Elbow Design allows for better hose routing, reducing strain on hoses and pipes |
| MATERIAL | Steel for high strength, resistance to corrosion, and is suitable for high-pressure or high-temperature |
| MATERIAL CONSTRUCTION | Steel |
|
WEIGHT (lbs) |
0.790 lb |
| CONNECTION SIZE 1 | 1" |
| CONNECTION SIZE | 1" |
| CONNECTION TYPE | MJIC|MBSPP |
| CONNECTION TYPE 1 | Male JIC |
| CONNECTION TYPE 2 | Male BSPP |
| FITTING TYPE | 45 deg Elbow |
| MAXIMUM OPERATING TEMPERATURE | 3000 psi |
| OPERATING TEMPERATURE | 375 deg F |
| SERIES | 3802 |
| THREAD SIZE | 1-5/16-12 x 1-11 |
| THREAD SIZE 1 | 1-5/16 - 12 |
| THREAD SIZE 2 | 1 - 11 |
| APPLICATIONS | Hydraulic Systems, Pneumatic Systems, Oil & Gas Industry, Plumbing & HVAC, Automotive & Aerospace |
| BRAND | Midland Industries |
The 1-5/16-12X1-11 Joint Industry Council x Male British Standard Pipe Parallel 45 Elbow is a high-quality hydraulic fitting designed to transition from a JIC 37° flare fitting to a BSPP threaded connection at a 45-degree angle. This fitting is ideal for hydraulic, pneumatic, and industrial fluid transfer systems, providing secure, leak-free connections and improving hose and pipe routing. The angled design reduces stress on hoses, ensuring durability and reliability in high-pressure applications.
| Specification | Details |
|---|---|
| TYPE | Male British Standard Pipe Parallel 45 Elbow |
| DESIGN |
45-Degree Elbow Design allows for better hose routing, reducing strain on hoses and pipes |
| MATERIAL | Steel for high strength, resistance to corrosion, and is suitable for high-pressure or high-temperature |
| MATERIAL CONSTRUCTION | Steel |
|
WEIGHT (lbs) |
0.790 lb |
| CONNECTION SIZE 1 | 1" |
| CONNECTION SIZE | 1" |
| CONNECTION TYPE | MJIC|MBSPP |
| CONNECTION TYPE 1 | Male JIC |
| CONNECTION TYPE 2 | Male BSPP |
| FITTING TYPE | 45 deg Elbow |
| MAXIMUM OPERATING TEMPERATURE | 3000 psi |
| OPERATING TEMPERATURE | 375 deg F |
| SERIES | 3802 |
| THREAD SIZE | 1-5/16-12 x 1-11 |
| THREAD SIZE 1 | 1-5/16 - 12 |
| THREAD SIZE 2 | 1 - 11 |
| APPLICATIONS | Hydraulic Systems, Pneumatic Systems, Oil & Gas Industry, Plumbing & HVAC, Automotive & Aerospace |
| BRAND | Midland Industries |
SKU:780216

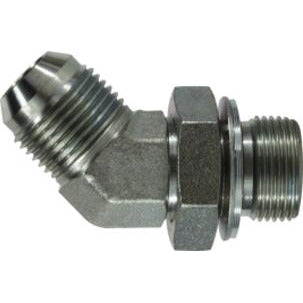

1-5/16-12 x 1-11 Joint Industry Council x Male British Standard Pipe Parallel 45 Elbow
- Regular price
- $190.53
- Sale price
- $190.53
- Regular price
-
Couldn't load pickup availability
