The 1-5/16-12 Joint Industry Council Tube Union Tee is a hydraulic fitting designed to connect three tubes of the same size in a T-shaped configuration, allowing for fluid flow distribution or combination. It features JIC (Joint Industrial Council) fittings on all three ends, ensuring a leak-tight, high-pressure connection This design makes it ideal for high-pressure applications in hydraulics, pneumatics, automotive, aerospace, and industrial systems.
| Specification | Details |
|---|---|
| TYPE | Joint Industry Council Tube Union Tee |
| DESIGN | 37° Flare Design provides a metal-to-metal seal, ensuring high-pressure performance and leak resistance. |
| MATERIAL | Steel for high strength, resistance to corrosion, and is suitable for high-pressure or high-temperature |
| MATERIAL CONSTRUCTION | Steel |
|
WEIGHT (lbs) |
0.740 lb |
| CONNECTION SIZE 1 | 1" |
| CONNECTION SIZE 2 | 1" |
| CONNECTION SIZE 3 | 1" |
| CONNECTION TYPE | JIC|JIC|JIC |
| CONNECTION TYPE 1 | 37 deg JIC Flared |
| CONNECTION TYPE 2 | 37 deg JIC Flared |
| CONNECTION TYPE 3 | 37 deg JIC Flared |
| FITTING TYPE | Tee |
| MAXIMUM OPERATING PRESSURE | 3000 psi |
| OPERATING TEMPERATURE | 375 deg F |
| THREAD SIZE | 1-5/16-12 |
| APPLICATIONS | Hydraulic Systems, Pneumatic Systems, Automotive & Aerospace, Industrial Machinery, Oil & Gas |
| BRAND | Midland Industries |
The 1-5/16-12 Joint Industry Council Tube Union Tee is a hydraulic fitting designed to connect three tubes of the same size in a T-shaped configuration, allowing for fluid flow distribution or combination. It features JIC (Joint Industrial Council) fittings on all three ends, ensuring a leak-tight, high-pressure connection This design makes it ideal for high-pressure applications in hydraulics, pneumatics, automotive, aerospace, and industrial systems.
| Specification | Details |
|---|---|
| TYPE | Joint Industry Council Tube Union Tee |
| DESIGN | 37° Flare Design provides a metal-to-metal seal, ensuring high-pressure performance and leak resistance. |
| MATERIAL | Steel for high strength, resistance to corrosion, and is suitable for high-pressure or high-temperature |
| MATERIAL CONSTRUCTION | Steel |
|
WEIGHT (lbs) |
0.740 lb |
| CONNECTION SIZE 1 | 1" |
| CONNECTION SIZE 2 | 1" |
| CONNECTION SIZE 3 | 1" |
| CONNECTION TYPE | JIC|JIC|JIC |
| CONNECTION TYPE 1 | 37 deg JIC Flared |
| CONNECTION TYPE 2 | 37 deg JIC Flared |
| CONNECTION TYPE 3 | 37 deg JIC Flared |
| FITTING TYPE | Tee |
| MAXIMUM OPERATING PRESSURE | 3000 psi |
| OPERATING TEMPERATURE | 375 deg F |
| THREAD SIZE | 1-5/16-12 |
| APPLICATIONS | Hydraulic Systems, Pneumatic Systems, Automotive & Aerospace, Industrial Machinery, Oil & Gas |
| BRAND | Midland Industries |
SKU:26031616

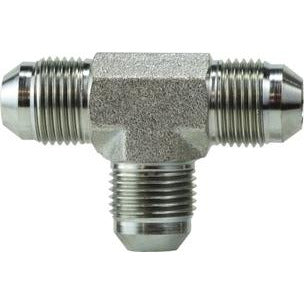

1-5/16-12 Joint Industry Council Tube Union Tee
- Regular price
- $26.35
- Sale price
- $26.35
